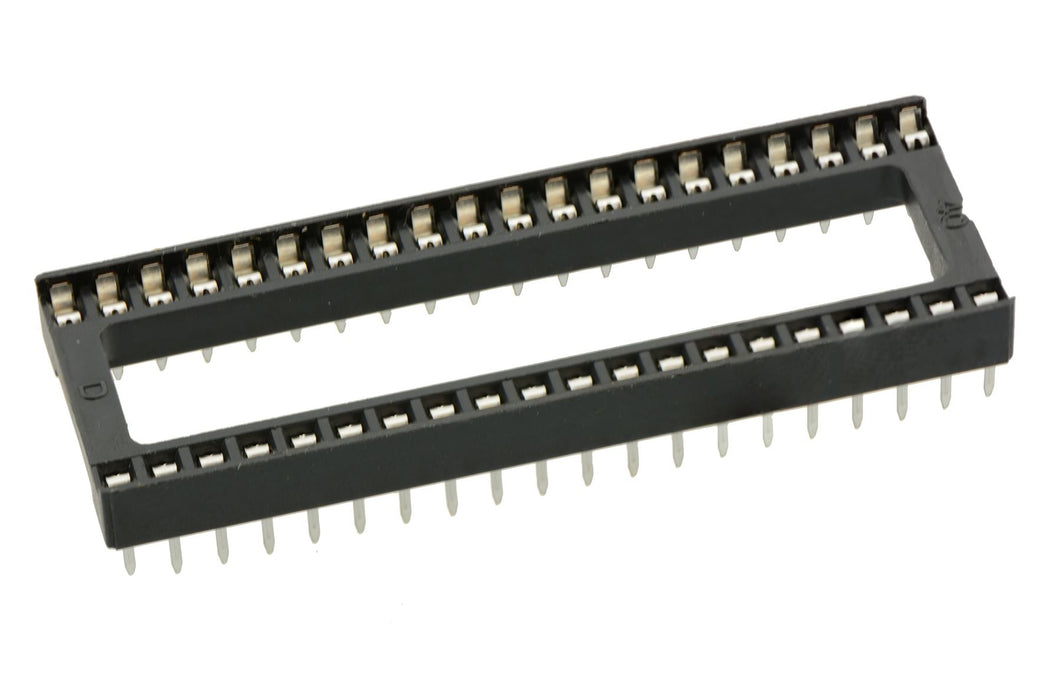

40-Pin DIP IC Socket 15.24mm
SKU 222009
MPN: 222009
Availability:
2979 in stock
Original price
£0.23
-
Original price
£0.23
Original price
£0.23
£0.23
-
£0.23
Current price
£0.23
Dual inline sockets with a thermoplastic body and tin plated phosphor bronze contacts. The sockets feature screw machined pins and can be mounted end to end to form one continuos run.
PCB hole: 0.6mm Height (above PCB): 5.1mm 2.54mm pitch Current rating: 1A Dimensions: 50.80 x 17.78 x 5.1mm (Length x Width x Height)
Specification
Back Order Lead Time | 30 Days |
Contact Material | Tin Plated Phosphor Bronze |
Current Rating | 1A |
Housing Material | PBT |
MOQ | 5 |
Mounting Type | PCB Mount |
Number of Pins | 40 |
Number of Ways | 40 |
Operating Temperature | -45°C to +105°C |
Pitch | 15.24mm |
Termination Method | Solder |
