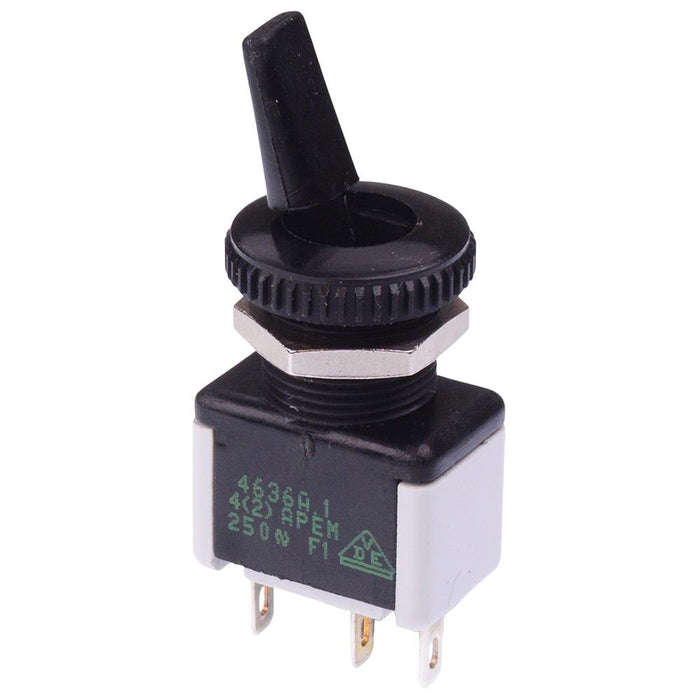

4636A-22 APEM On-On Insulated 12mm Toggle Switch SPDT 6A - check hardware
by APEM
SKU 487805
MPN: 4636A-22
Back Order Availability: 10 Days
Availability:
225 in stock, ready to be shipped
Original price
£2.48
-
Original price
£2.48
Original price
£2.48
Inc VAT
£2.48
-
£2.48
Current price
£2.48
Inc VAT
The 4636A-22 is an insulated toggle switch manufactured by APEM, featuring momentary SPDT contacts and quick connect terminals. The switch features a 6A current rating and insulated flat lever, suitable for a wide range of applications.
SPDT contacts On-On function 4.8mm Quick connect terminals Rating: 6A 125VAC, 4A 250VAC Silver contacts Panel cut-out: 12.2mm Panel thickness: 5mm max
Specification
Actuation | Latching |
Back order lead time | 10 Days |
Contact configuration | SPDT |
Contact material | Silver |
Contact rating | 4A 250VAC |
Current rating | 6A |
Electrical life | 10,000 Cycles |
Illuminated | No |
Mounting style | Panel |
Number of poles | 1 |
Number of positions | 2 |
Operating temperature | -20°C to +55°C |
Panel cut out | 12.2mm |
Panel thickness | 5mm |
Product series | 4600 |
Switch operation | On-On |
Terminal type | Quick Connect |
Voltage rating | 250VAC |
