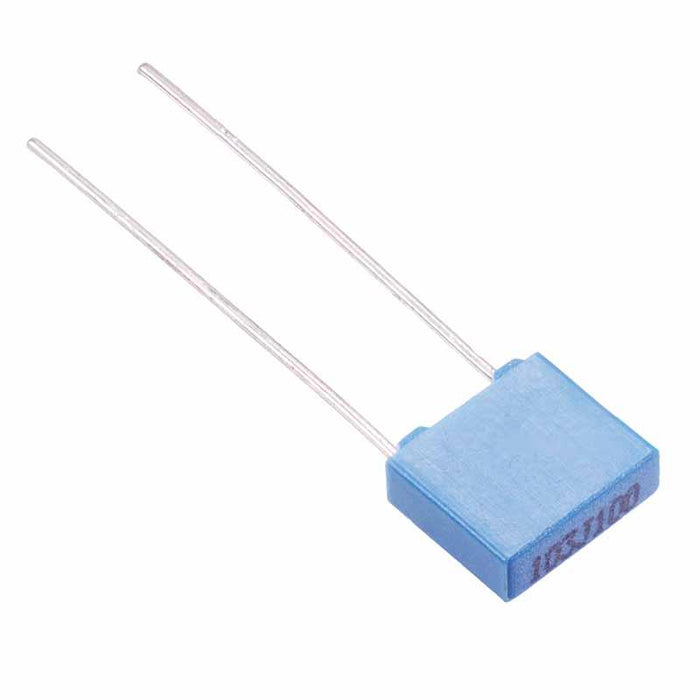

47nF 100V 5mm Polyester Box Capacitor

SKU 482869


4358 in stock
Original price £0.16 - Original price £0.16
Original price
£0.16 Inc VAT
£0.16 - £0.16
Current price £0.16 Inc VAT
47nF 100V mini box 5mm polyester film capacitor manufactured from a non-inductive metal structure and wax sealed providing excellent insulation performance. The capacitors are widely used in DC and impulse circuits including communication equipment, radio, tv and other electronic equipment.

  • ±5% tolerance
  • 5mm pitch
  • Moisture proof
  • Flame retardant
  • Low dissipation factor
  • Excellent stability and reliability
  • 7.2 x 2.5 x 6.5mm (Width x Thickness x Height)
  • Specification
    Back order lead time 45 Days
    Capacitance 47nF
    Height 6.5mm
    Material Polyester
    Moq 10
    Mounting style Through Hole
    Operating temperature 85°C
    Package Box
    Pitch 5mm
    Thickness 2.5mm
    Tolerance ±5%
    Voltage rating 100V
    Width 7.2mm
