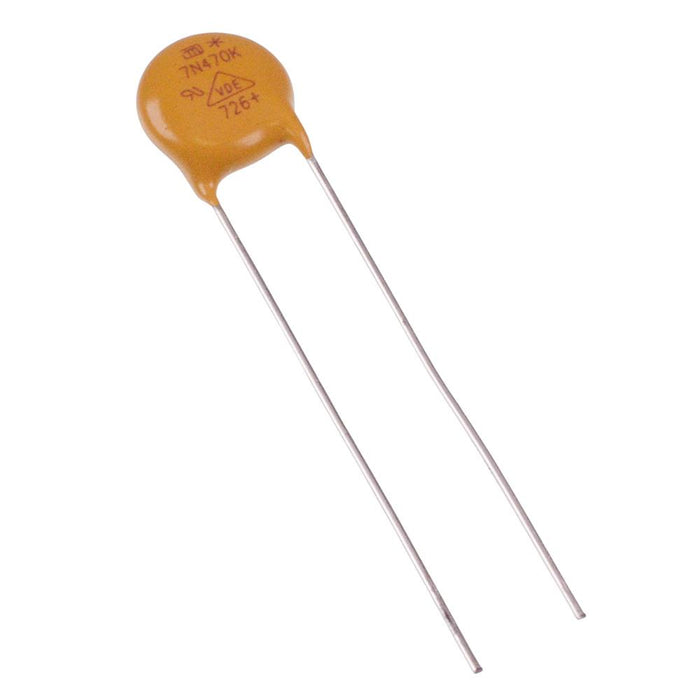

47V Metal Oxide Varistor 3J 9mm JVR07N470K
by Joyin
SKU 552320
MPN: JVR07N470K
Availability:
177 in stock, ready to be shipped
Original price
£0.29
-
Original price
£0.29
Original price
£0.29
Inc VAT
£0.29
-
£0.29
Current price
£0.29
Inc VAT
47V metal oxide varistor featuring radial leads and epoxy coated disc construction, suitable for protecting sensitive components against unwanted voltage spikes.
Varistor voltage: 47V Pitch: 5mm Disc diameter: 9mm Energy: 3J Operating voltage: 30V AC, 38V DC
Specification
| Disc diameter | 9mm |
| Energy | 3J |
| Maximum operating voltage | 30VAC, 38VDC |
| Mounting type | Through Hole |
| Pitch | 5mm |
| Power rating | 20mW |
| Varistor voltage | 47V |
| Varistor voltage tolerance | ±10% |
