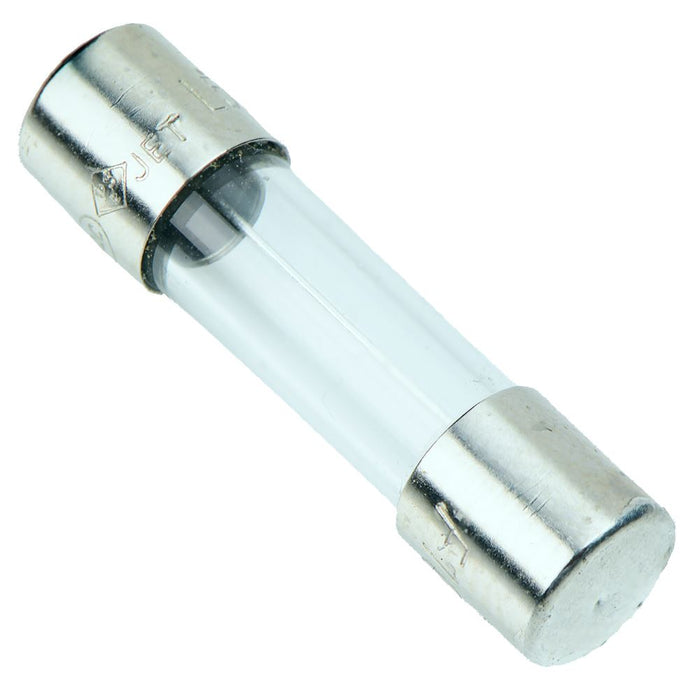

4A 5x20mm Glass Quick Blow Fuse
SKU 550041
MPN: 550041
Availability:
2008 in stock, ready to be shipped
Original price
£0.12
-
Original price
£0.12
Original price
£0.12
Inc VAT
£0.12
-
£0.12
Current price
£0.12
Inc VAT
Range of glass bodied quick blow fuses suitable for the protection of electrical circuits and appliances.
Current rating 4A 5 x 20mm overall dimensions Breaking capacity 35A 250V AC UL, CCC, VDE, PSE, KC approved
Specification
| Blow characteristic | Fast Blow |
| Body material | Glass |
| Contact material | Nickel Plated Brass |
| Current rating | 4A |
| Diameter | 5mm |
| Length | 20mm |
| Operating temperature | -55°C to +125°C |
| Voltage rating | 250VAC |
