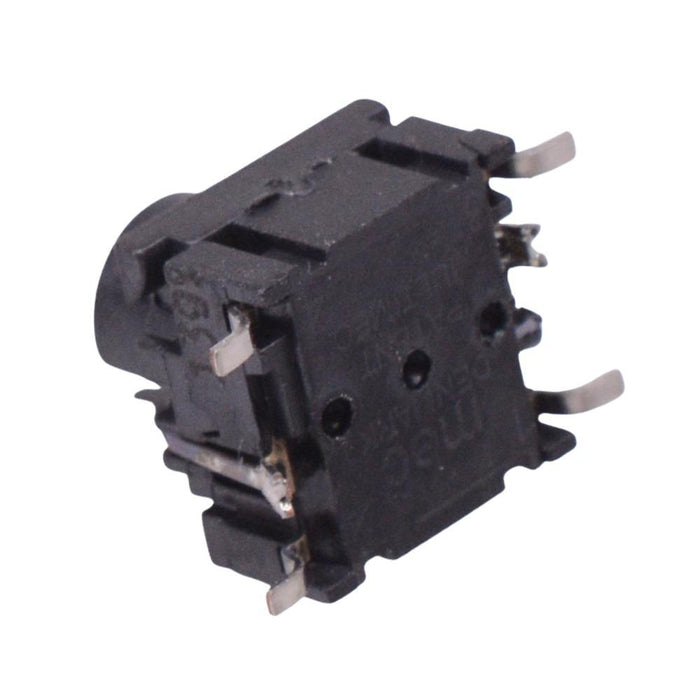

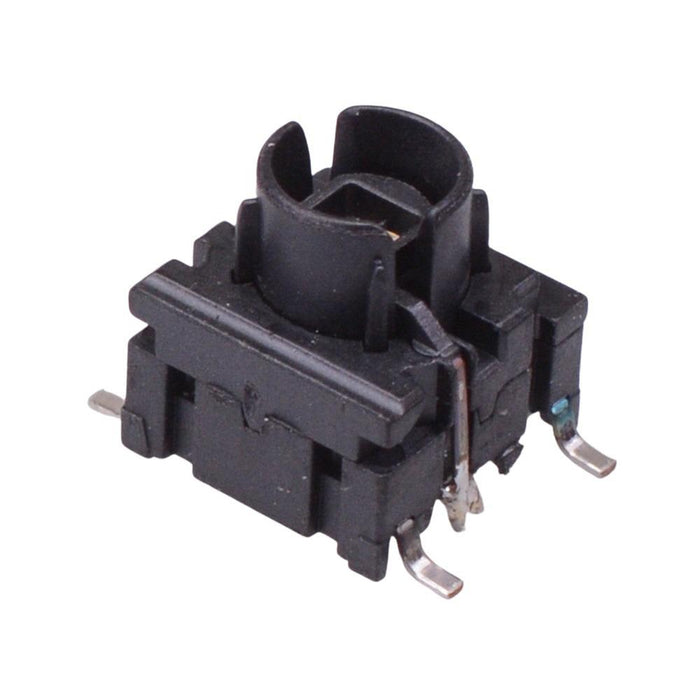

4FSH942 MEC Yellow LED High Performance Surface Mount Tactile Switch PCB SPST-NO

by MEC
SKU 489821

MPN: 4FSH942

Availability:
534 in stock
Original price £3.75 - Original price £3.75
Original price
£3.75
£3.75 - £3.75
Current price £3.75
The 4FTH942 is a high performance illuminated tactile switch manufactured by MEC, featuring NO silver contacts and IP67 sealing. The switches are part of the illumec 4F series which utilises a snap-on cap retention system as the Multimec 3F series. The robust design of the switches make them suitable for a wide range of commerical and industrial applications.

  • 10 x 10mm package
  • Height: 10.4mm
  • Yellow LED
  • LED forward voltage: 1.75V typical
  • LED forward current: 25mA
  • Momentary NO contacts
  • IP67 protection level
  • Through hole mounting
  • Actuation force: 3.5N
  • Terminal pitch: 10.16 x 7.62mm
  • Compatible caps: 1D, 1E, 1F, 1GA, 1GC, 1K, 1KB, 1KC, 1N, 1Q, 1R, 1S, 1T, 1U, 1V, 1WA, 1WD, 1X and 1ZC
  • Specification
    Actuation Momentary
    Colour Yellow
    Contact Configuration SPST
    Contact Material Silver
    Contact Rating 50mA 24VDC
    Current Rating 50mA
    Height 10.4mm
    Illumination Colour Yellow
    Illumination Voltage 1.75V
    MOQ 1
    Mounting Style PCB
    Number of Poles 1
    Number of Positions 2
    Operating Force 3.5N
    Operating Temperature -30°C to +85°C
    Pitch 10.16 x 7.62mm
    Product Series illumec 4F
    Protection Level IP67
    Switch Operation Off-(On)
    Terminal Type Through Hole
    Voltage Rating 24VDC
