4mm Cylindrical Reed Switch SPST-NO 175VDC - PRA 175/10, S1909B
by Comus
SKU 552621
MPN: S1909B
Availability:
Only 5 left!
Original price
£7.14
-
Original price
£7.14
Original price
£7.14
Inc VAT
£7.14
-
£7.14
Current price
£7.14
Inc VAT

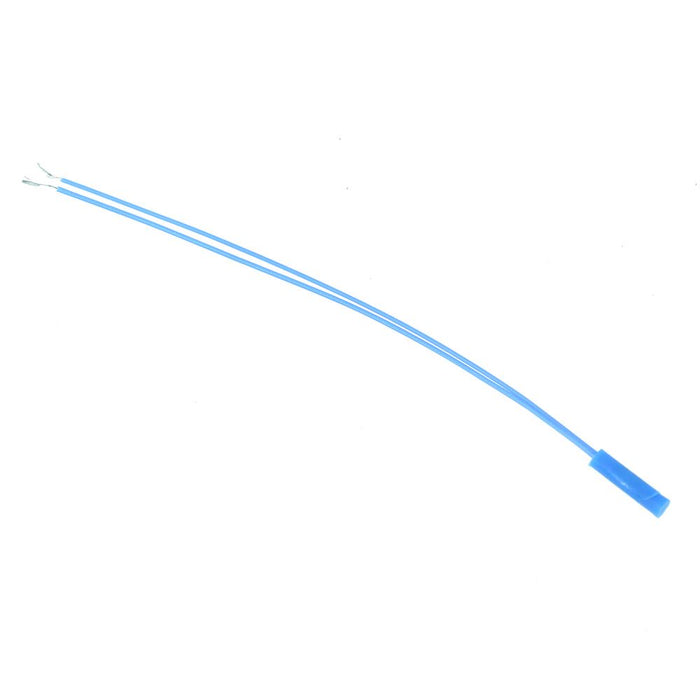

The PRA 175/10 is a cylindrical reed switch featuring normally open contacts, polypropylene housing. Suitable for applications including position and limit sensing, linear actuators, security system switch and door switch.
Suggested magnet: PRLM Normally open contacts Polypropylene case Maximum switching voltage: 140VAC, 175VDC Maximum switching current: 250mA AC, 350mA DC Maximum switching capacity: 5W Switching distance: 4mm min 28AWG PTFE wire
Specification
| Back order lead time | 180 Days |
| Carry current | 0.5A |
| Contact configuration | SPST-NO |
| Material | Polypropylene |
| Maximum switching capacity | 5W |
| Maximum switching current | 0.35A DC, 0.25A AC |
| Maximum switching voltage | 175VDC, 140VAC |
| Operating temperature | -20°C to +70°C |
