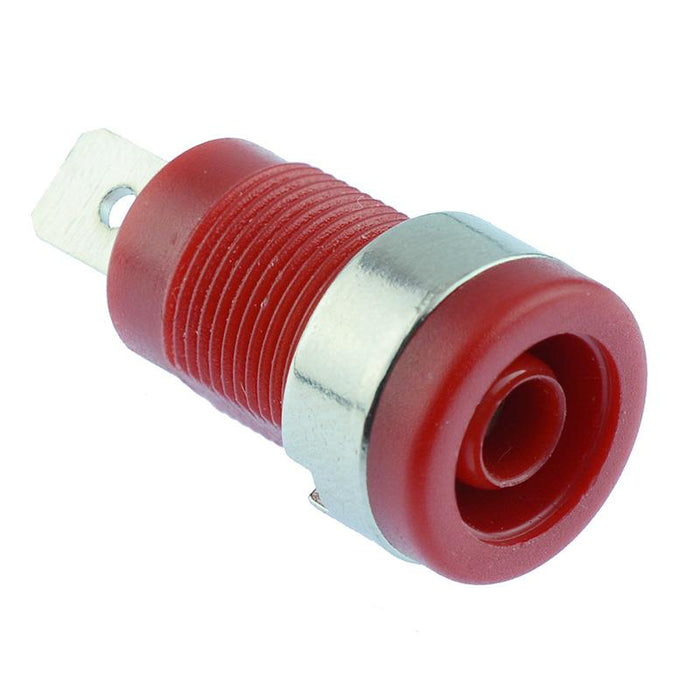

4mm Red Banana Test Socket
SKU 210038
MPN: 210038
Availability:
430 in stock
Original price
£0.63
-
Original price
£0.63
Original price
£0.63
Inc VAT
£0.63
-
£0.63
Current price
£0.63
Inc VAT
Shrouded test sockets for 4mm diameter plugs and suitable for panel mounting.
6.3mm fast-on contacts Panel cut-out: 12mm Maximum voltage: 30VAC, 60VDC Maximum current: 36A Dimensions: 30.1 x 14.6mm (Length x Diameter)
Specification
| Back order lead time | 40 Days |
| Colour | Red |
| Contact material | Nickel Plated Copper |
| Current rating | 36A |
| Housing material | ABS |
| Mounting type | Panel |
| Number of poles | 1 |
| Operating temperature | -30°C to +70°C |
| Panel cut out | 12mm |
| Termination method | Tab |
| Voltage rating | 30VAC, 60VDC |
