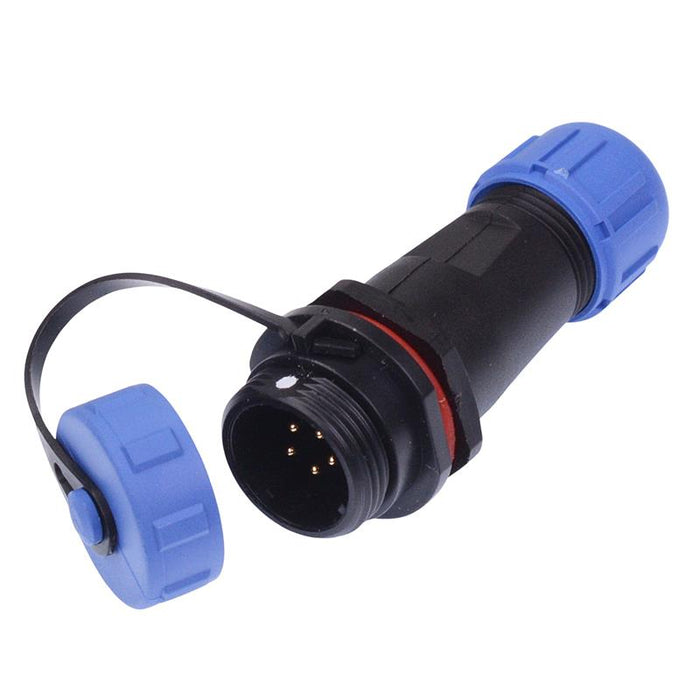

5 Pin Waterproof Male Socket Cable Connector IP68
SKU 485017
MPN: 485017
Availability:
115 in stock
Original price
£4.36
-
Original price
£4.36
Original price
£4.36
£4.36
-
£4.36
Current price
£4.36
5 way male socket featuring IP68 protection rating suitable for applications requiring a waterproof and rugged connector.
Outer cable diameter: 4-6.5mm Protection level: IP68 Rating: 5A 180V Solder termination Rated for 500 mating cycles Dimensions: 48 x 19.5mm (length x diameter)
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Gold Plated Brass |
| Current Rating | 5A |
| Gender | Male |
| Housing Material | PA66 |
| Mounting Type | Cable Mount |
| Number of Ways | 5 |
| Operating Temperature | -25°C to +80°C |
| Protection Level | IP68 |
| Termination Method | Solder |
| Thread Size | W13 |
| Voltage Rating | 180V |
| Wire Range | 4-6.5mm Diameter |
