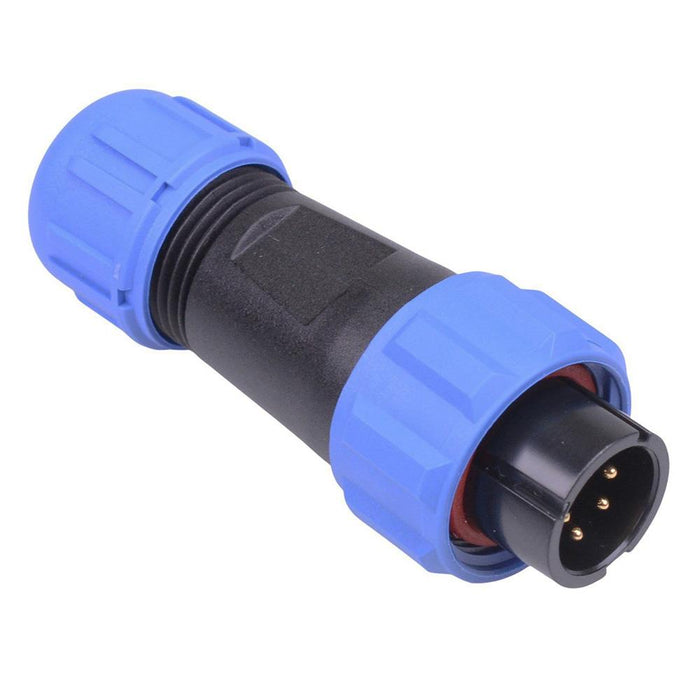

5 Pin Waterproof W13 Male Plug Cable Connector IP68
SKU 490927
MPN: SE-W13A1-05
Availability:
76 in stock
Original price
£2.76
-
Original price
£2.76
Original price
£2.76
£2.90
£2.90
-
£2.90
Current price
£2.90
5 way male circular plug featuring IP68 protection rating and solder terminals. The connector features a compact design, suitable for applications requiring a waterproof rugged connector.
Outer cable diameter: 4-6.5mm Protection level: IP68 Rating: 5A 180V Solder termination Rated for 500 mating cycles Dimensions: 48 x 18.8mm (length x diameter)
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Gold Plated Brass |
| Current Rating | 5A |
| Gender | Male |
| Housing Material | PPO, PA66 |
| MOQ | 1 |
| Mounting Type | Cable |
| Number of Ways | 5 |
| Operating Temperature | -25°C to +80°C |
| Protection Level | IP68 |
| Termination Method | Solder |
| Thread Size | W13 |
| Voltage Rating | 180V |
| Wire Range | ≤18AWG |
