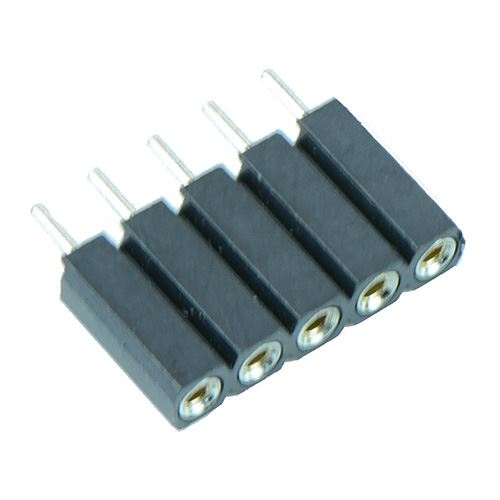

5 Way 2.54mm Single In Line SIL Socket
SKU 550946
MPN: 550946
Availability:
1879 in stock
Original price
£0.29
-
Original price
£0.29
Original price
£0.29
£0.29
-
£0.29
Current price
£0.29
Single in-line socket featuring a 2.54mm pitch, manufactured from PPS for use with PCBs.
5 Ways Contact material: phosphor bronze Housing material: PPS UL 94V-0 Height above PCB: 7.0mm Pin height: 3.0mm Hole diameter: 1.27mm
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Phosphor Bronze |
| Current Rating | 1A |
| Housing Material | PS |
| MOQ | 5 |
| Mounting Type | PCB Mount |
| Number of Pins | 5 |
| Number of Ways | 5 |
| Operating Temperature | -45°C to +105°C |
| Pitch | 2.54mm |
| Termination Method | Solder |
