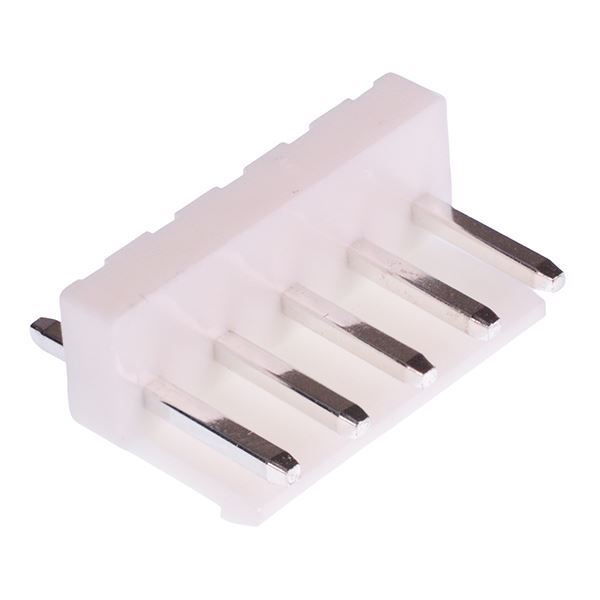

5 Way 3.96mm PCB Straight Pin header
SKU 484687
MPN: 484687
Availability:
2390 in stock
Original price
£0.19
-
Original price
£0.19
Original price
£0.19
Inc VAT
£0.19
-
£0.19
Current price
£0.19
Inc VAT
Single row 5 way pin header featuring 3.96mm pitch suitable for connecting wires to PCBs. The headers feature a friction lock to ensure secure retention when mated, suitable as a replacement for JST VH.
3.96mm pitch Solder termination PA66 housing Rated Current: 10A Rated Voltage: 250V Wire range: 18-26AWG
Specification
| Back order lead time | 45 Days |
| Contact material | Tin Plated Brass |
| Current rating | 10A |
| Housing material | PA66 |
| Moq | 5 |
| Mounting type | PCB Mount |
| Number of ways | 5 |
| Operating temperature | -25°C to +85°C |
| Pitch | 3.96mm |
| Termination method | Solder |
| Voltage rating | 250VAC |
| Wire range | 26-18AWG |
