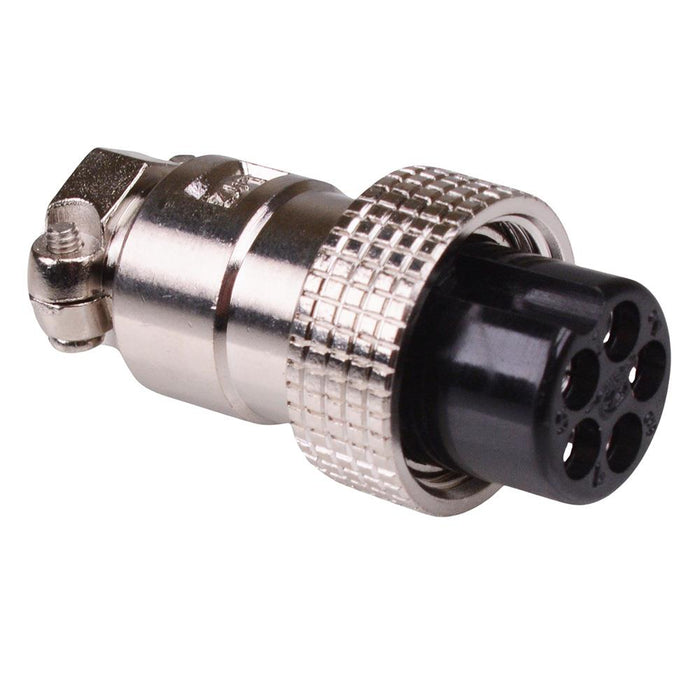

5 Way Female M19 Metal Circular Connector Plug
SKU 488517
MPN: 488517
Availability:
86 in stock
Original price
£2.40
-
Original price
£2.40
Original price
£2.40
£2.40
-
£2.40
Current price
£2.40
5 pole female circular connector featuring a metal body and IP55 protection rating. The plug features an M19 thread and high current rating suitable for a wide range of applications.
5 ways Rating: 35A 150V 44.5mm length Solder contacts Cable diameter: 9.5mm max
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Copper |
| Current Rating | 35A |
| Gender | Female |
| Housing Material | Zinc Alloy |
| Mounting Type | Cable Mount |
| Number of Ways | 5 |
| Operating Temperature | -20°C to +85°C |
| Protection Level | IP55 |
| Termination Method | Solder |
| Thread Size | M19 |
| Voltage Rating | 150V |
| Wire Range | 9.5mm Max |
