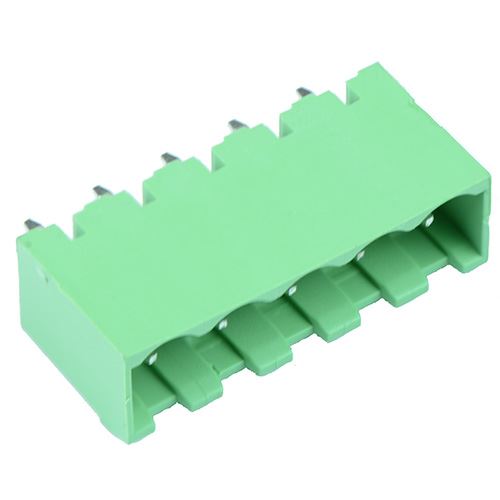

5-Way Plug-In PCB Vertical Closed Header 5.08mm
SKU 550959
MPN: 550959
Availability:
572 in stock
Original price
£0.30
-
Original price
£0.30
Original price
£0.30
£0.30
£0.30
-
£0.30
Current price
£0.30
Closed end side entry vertical headers suitable for PCB mounting.
5 poles 5.08mm pitch 15A current rating 300V voltage rating 2.5mm² maximum wire size Solder termination PCB mounting
Specification
| Back Order Lead Time | 30 Days |
| Colour | Green |
| Contact Material | Tin Plated Brass |
| Current Rating | 15A |
| Housing Material | PA66 |
| Mounting Type | PCB Mount |
| Number of Ways | 5 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.08mm |
| Termination Method | Solder |
| Voltage Rating | 300VAC |
