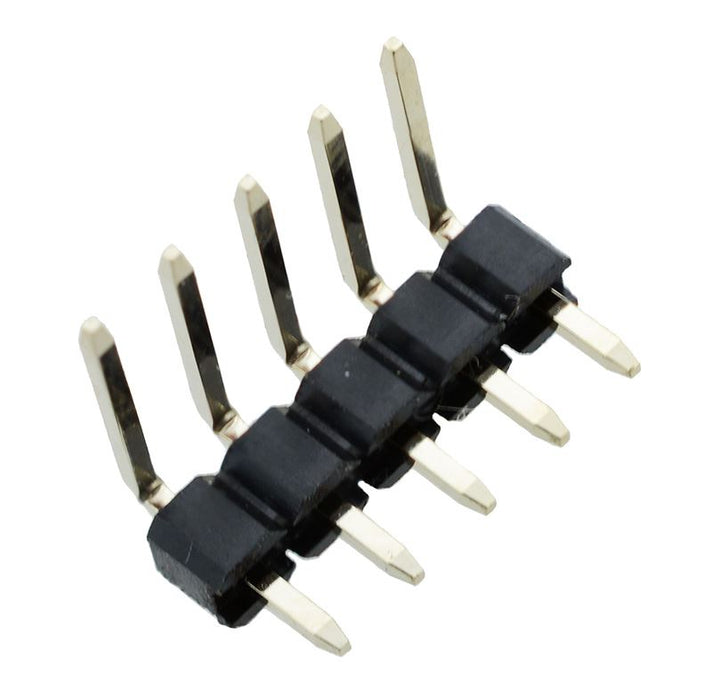

5-Way Right Angle Male Header 2.54mm
SKU 329011
MPN: 329011
Availability:
684 in stock
Original price
£0.18
-
Original price
£0.18
Original price
£0.18
£0.18
£0.18
-
£0.18
Current price
£0.18
Right angle type single row PCB header suitable for a range of applications including use with PCBs, flat cables etc.
Gold plated brass contacts 0.64mm pin diameter Solder termination Pitch: 2.54mm 6mm pin height Can easily be separated
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Gold Plated Brass |
| Current Rating | 1A |
| Housing Material | PA6T |
| MOQ | 5 |
| Mounting Type | PCB Mount |
| Number of Pins | 5 |
| Number of Ways | 5 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 2.54mm |
| Termination Method | Solder |
