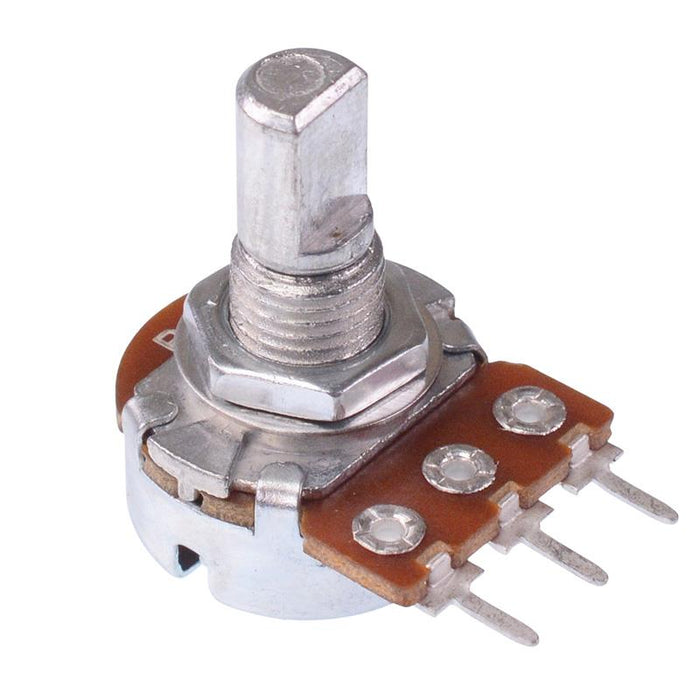

500K 16mm Linear Splined Potentiometer D Shaft

SKU 486680

MPN: 486680

Availability:
86 in stock
Original price £0.55 - Original price £0.55
Original price
£0.55
£0.55 - £0.55
Current price £0.55
500K linear 16mm potentiometer featuring a 6mm D shaft and pin terminals, suitable for PCB mounting.

  • 500K linear
  • 6mm diameter D shaft
  • Standard 16mm diameter size
  • 20% tolerance
  • Panel cut-out: 7mm
  • 5mm pitch
  • 15mm shaft length
  • Power: 125mW
  • Specification
    Back Order Lead Time 5 Days
    Maximum Voltage 200V
    Mounting Hole Diameter 10mm
    Mounting Type Panel Mount
    Operating Temperature -25°C to +70°C
    Pitch 5mm
    Power Rating 0.125W
    Resistance 500KΩ
    Shaft Diameter 6mm
    Taper Linear
    Termination Type Pin
    Tolerance ±20%
    Total Rotation 300°
