500K Linear 16mm Potentiometer Solder Lugs
SKU 133047
MPN: 133047
Availability:
Only 4 left!
Original price
£0.59
-
Original price
£0.59
Original price
£0.59
£0.59
-
£0.59
Current price
£0.59

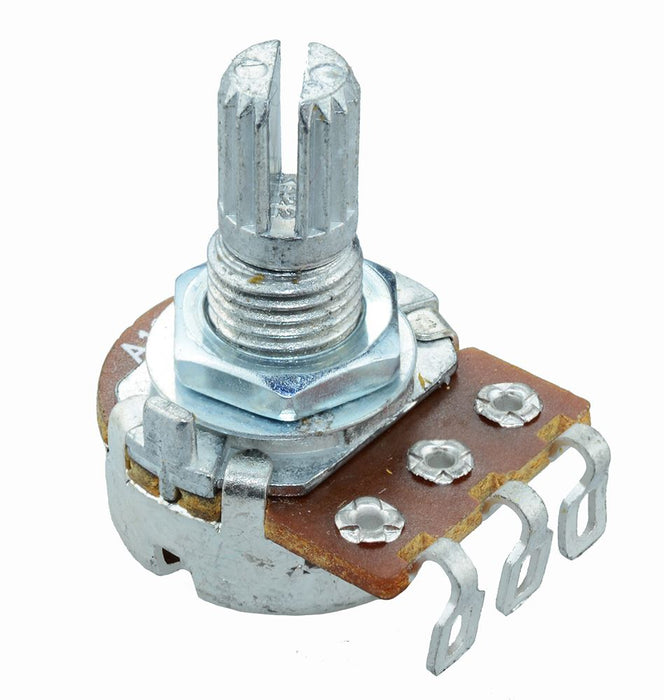

16mm potentiometers with a splined 6mm shaft and solder contacts.
500K linear Standard 16mm diameter size Solder lug contacts 20% tolerance Panel cut-out: 7mm 5mm pitch 15mm shaft length
Specification
| Back Order Lead Time | 45 Days |
| Dimensions | 17mm Diameter |
| Maximum Voltage | 200V |
| Mounting Hole Diameter | 7mm |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C to +70°C |
| Pitch | 5mm |
| Power Rating | 0.125W |
| Resistance | 500KΩ |
| Shaft Diameter | 6mm |
| Taper | Linear |
| Termination Type | Solder Lug |
| Tolerance | ±20% |
| Total Rotation | 300° |
