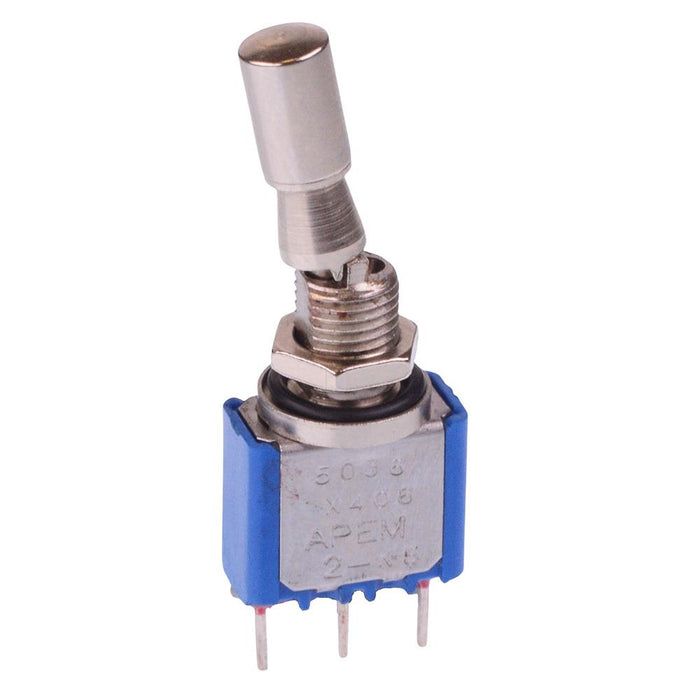

5036A2VX408 APEM On-On Miniature Locking Toggle Switch SPDT 4A 30VDC
by APEM
SKU 488144
MPN: 5036A2VX408
Availability:
Out of stock
Sold out
Original price
£6.23
-
Original price
£6.23
Original price
£6.23
£6.23
£6.23
-
£6.23
Current price
£6.23
The 5036A2VX408 is a miniature toggle switch featuring a 6.35mm bushing and On-On SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making it suitable for a wide range of panel and PCB mount applications.
SPDT contacts On-On operation Solder PCB terminals Lever: locking 14.75mm length 4.7mm pitch terminal spacing Rating: 4A 30VDC Panel cut-out: 6.5mm APEM 5000 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 100,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Pitch | 4.7mm |
| Product Series | 5000 |
| Switch Operation | On-On |
| Terminal Type | Through Hole |
| Voltage Rating | 30VDC |
