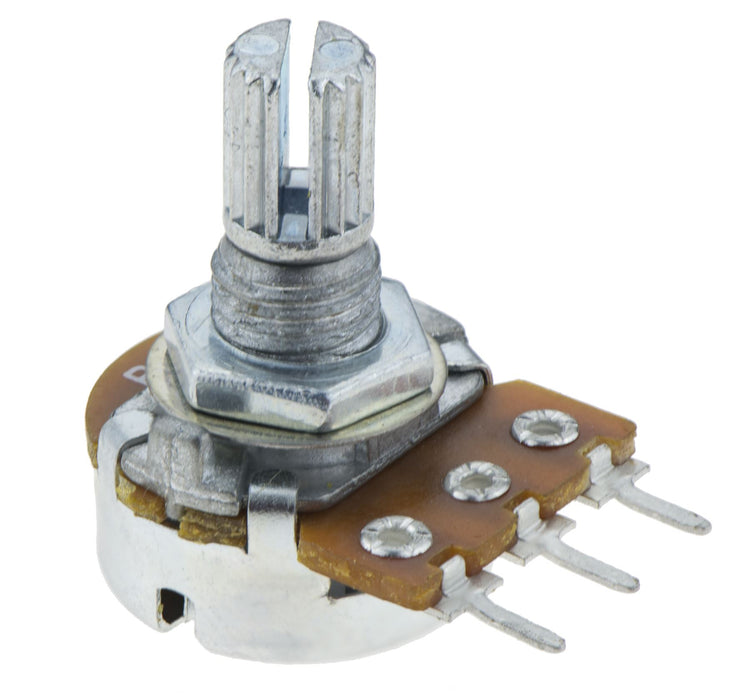

50K 16mm Logarithmic Splined Potentiometer

SKU 133012

MPN: 133012

Availability:
206 in stock
Original price £0.49 - Original price £0.49
Original price
£0.49 Inc VAT
£0.49 - £0.49
Current price £0.49 Inc VAT
16mm potentiometers with a splined 6mm shaft suitable for PCB mounting.

  • 50K logarithmic
  • Standard 16mm diameter size
  • 20% tolerance
  • Panel cut-out: 7mm
  • 5mm pitch
  • 15mm shaft length

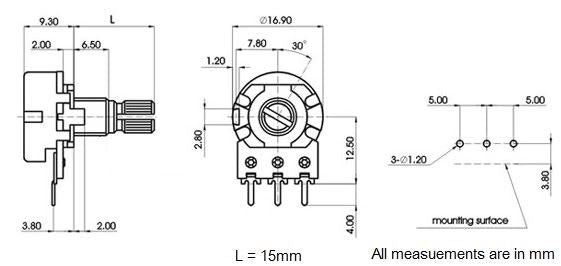

  • Specification
    Back order lead time 45 Days
    Dimensions 17mm Diameter
    Maximum voltage 150V
    Mounting hole diameter 7mm
    Mounting type Panel Mount
    Operating temperature -25°C to +70°C
    Pitch 5mm
    Power rating 0.063W
    Resistance 50KΩ
    Shaft diameter 6mm
    Taper Logarithmic
    Termination type Pin
    Tolerance ±20%
    Total rotation 300°
