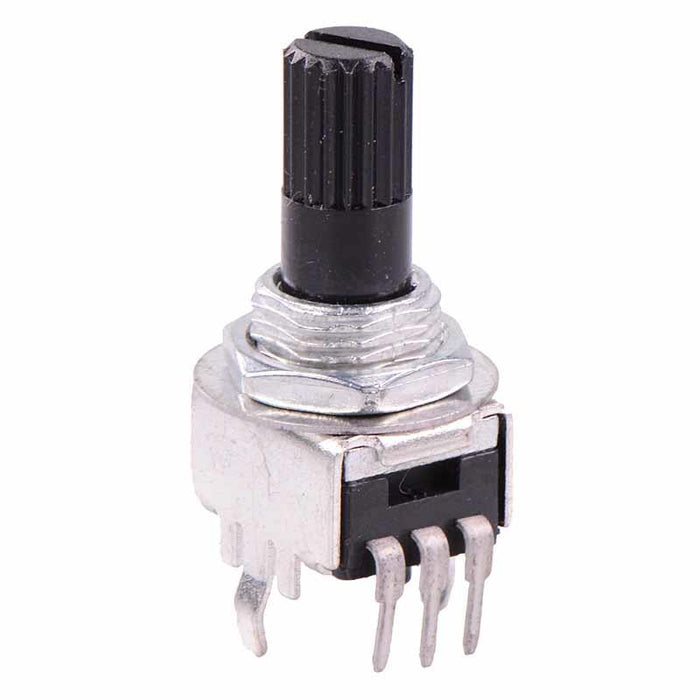

50K Linear 9mm Potentiometer Knurled 6mm Shaft
SKU 482347
MPN: 482347
Availability:
194 in stock
Original price
£0.49
-
Original price
£0.49
Original price
£0.49
Inc VAT
£0.49
-
£0.49
Current price
£0.49
Inc VAT
50K linear 9mm potentiometer featuring an insulated 6mm splined shaft and snap-in clip. The potentiometers are suitable for PCB or panel mount applications including use with communications equipment, consumer goods, portable electronics, commercial appliances and sound equipment.
Insulated 6mm splined shaft Snap-in clip 9mm panel cut-out ±20% tolerance 25mm shaft length 0.05W power rating 50V AC / 20V DC maximum operating voltage
Specification
| Back order lead time | 45 Days |
| Maximum voltage | 50VAC / 20VDC |
| Mounting hole diameter | 9mm |
| Mounting type | PCB |
| Operating temperature | -10°C to +70°C |
| Pitch | 2.5mm |
| Power rating | 0.05W |
| Resistance | 50KΩ |
| Shaft diameter | 6mm |
| Taper | Linear |
| Termination type | Pin |
| Tolerance | ±20% |
| Total rotation | 280° |
