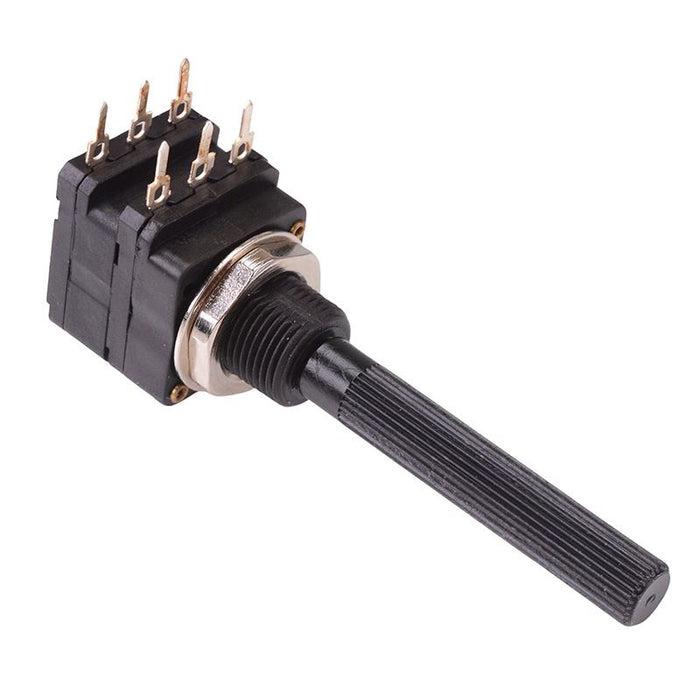

50K Linear Stereo PC16 Potentiometer Piher

by Piher
SKU 486439

MPN: 6PSI-50K

Availability:
6 in stock
Original price £5.20 - Original price £5.20
Original price
£5.20
£5.20 - £5.20
Current price £5.20
Piher enclosed 50K linear stereo potentiometer featuring a 6mm diameter shaft and self-extinguishing plastic case, suitable for PCB applications.

  • 6mm diameter splined shaft
  • 31.5mm shaft length
  • ±20% tolerance
  • 300° mechanical rotation
  • Carbon resistive element
  • Dust proof enclosure
  • Self extinguishable material UL94V-0
  • Piher PC16 series
  • Specification
    Back Order Lead Time 5 Days
    Maximum Voltage 250VDC
    Mounting Hole Diameter 10mm
    Mounting Type Panel Mount
    Operating Temperature -25°C to +70°C
    Pitch 5mm
    Power Rating 0.2W
    Resistance 50KΩ
    Shaft Diameter 6mm
    Taper Linear
    Termination Type Pin
    Tolerance ±20%
    Total Rotation 300°
