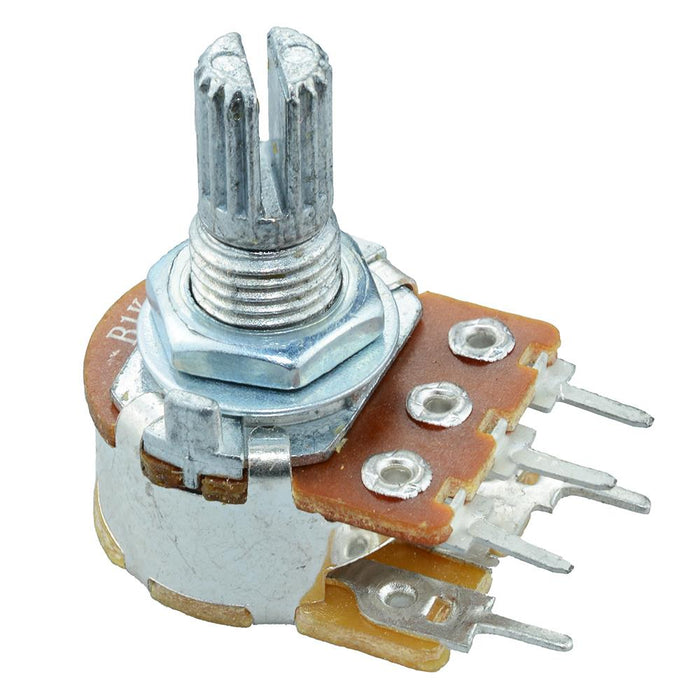

50K Logarithmic 16mm Potentiometer with Switch
SKU 484822
MPN: 484822
Availability:
930 in stock
Original price
£0.84
-
Original price
£0.84
Original price
£0.84
Inc VAT
£0.84
-
£0.84
Current price
£0.84
Inc VAT
50K logarithmic switched 16mm potentiometer with a splined 6mm shaft suitable for PCB mounting.
Features switch Standard 16mm diameter size 20% tolerance Panel cut-out: 7mm 5mm pitch 15mm shaft length
Specification
Back order lead time | 45 Days |
Dimensions | 17mm Diameter |
Maximum voltage | 150V |
Mounting hole diameter | 7mm |
Mounting type | Panel Mount |
Operating temperature | -25°C to +70°C |
Pitch | 5mm |
Power rating | 0.063W |
Resistance | 50KΩ |
Shaft diameter | 6mm |
Taper | Logarithmic |
Termination type | Pin |
Tolerance | ±20% |
Total rotation | 300° |
