50r 5W Wirewound Control Potentiometer
SKU 480299
MPN: 480299
Availability:
42 in stock
Original price
£6.42
-
Original price
£6.42
Original price
£6.42
£6.42
£6.42
-
£6.42
Current price
£6.42

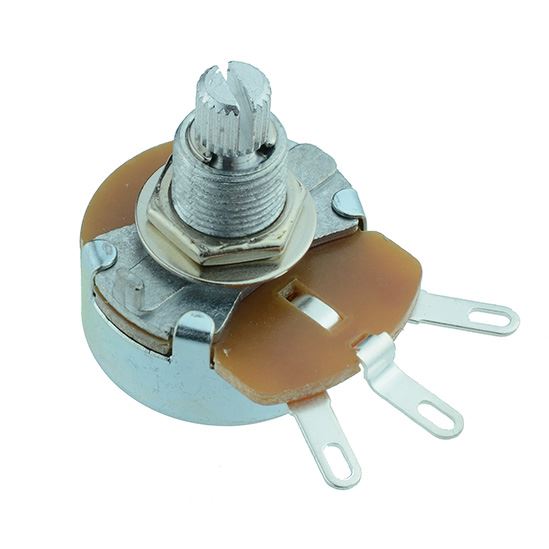

50 ohm high quality wirewound potentiometers featuring a 5W power rating, suitable for loudspeaker volume controls, motor speed controllers and various other electrical applications.
Power rating: 5W Resistance: 50 ohm Shaft diameter: 6mm Shaft length: 6.5mm Body diameter: 24mm Maximum operating voltage: 120V
Specification
| Back Order Lead Time | 5 |
| Dimensions | 24mm Diameter |
| Maximum Voltage | 120V |
| MOQ | 1 |
| Mounting Hole Diameter | 10mm |
| Power Rating | 5W |
| Resistance | 50Ω |
| Shaft Diameter | 6mm |
| Taper | Linear |
| Termination Type | Solder Lug |
| Tolerance | ±20% |
| Total Rotation | 300° |
