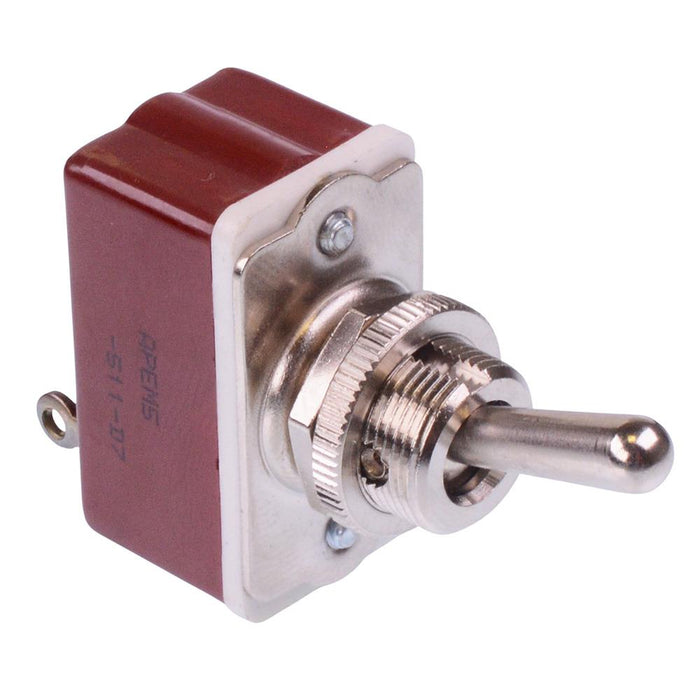

511X1080 APEM On-Off 12mm Toggle Switch SPST 6A
by APEM
SKU 487839
MPN: 511X1080
Availability:
29 in stock
Original price
£2.95
-
Original price
£2.95
Original price
£2.95
Inc VAT
£2.95
-
£2.95
Current price
£2.95
Inc VAT
The 511X1080 is a On-Off toggle switch by APEM featuring a 12mm bushing and SPST contacts. The switch features solder terminals and is suitable for a wide range of panel mount applications.
On-Off function SPST contacts Panel cut-out: 12mm Solder terminals Rating: 6A 125VAC, 3A 250VAC, 6A 30VDC
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact rating | 6A 30VDC |
| Current rating | 6A |
| Electrical life | 20,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 12.2mm |
| Panel thickness | 5mm |
| Product series | 500 |
| Switch operation | On-Off |
| Terminal type | Solder |
| Voltage rating | 250VAC / 30VDC |
