51mm V3 Microswitch SPST-NO 5A 250VAC
by PTR HARTMANN
SKU 487769
MPN: MAB102A02B05B01A
Availability:
238 in stock
Original price
£1.12
-
Original price
£1.12
Original price
£1.12
Inc VAT
£1.12
-
£1.12
Current price
£1.12
Inc VAT

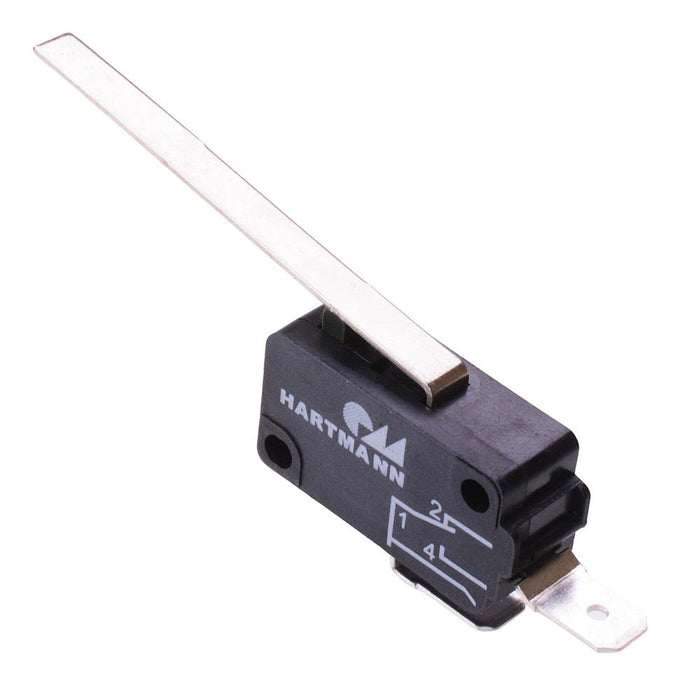

V3 microswitch featuring a 51mm length lever and 0.8N operating force. The switch features 6.35mm quick connect terminals and is suitable for a wide range of applications.
51mm length lever 6.35mm quick connect terminals SPST-NO contacts Rating: 5(2)A 250VAC, 5A 125VAC 0.8N operating force Body dimensions: 29 x 14.8 x 9.5mm (length x height x width)
Specification
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact rating | 16A 250VAC |
| Current rating | 16A |
| Number of positions | 2 |
| Operating force | 0.8N |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
