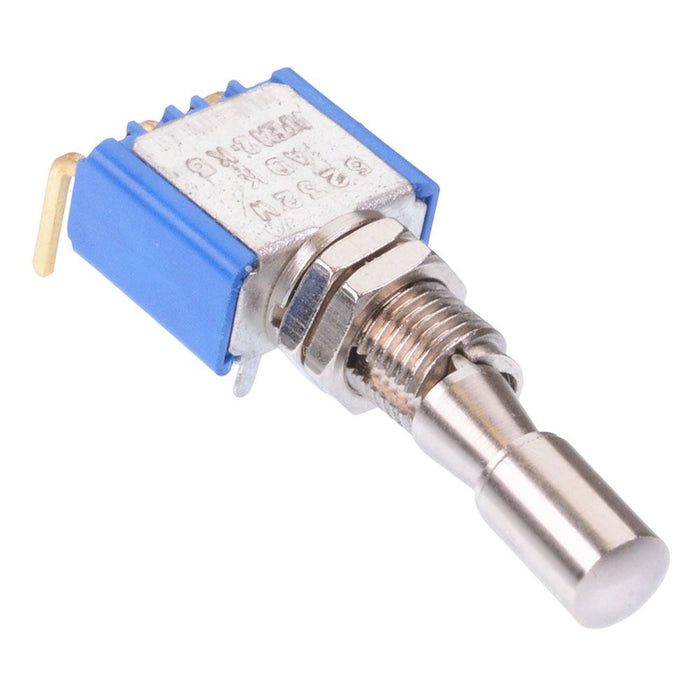

5232THWADKB14V/1 APEM On-(On) Momentary Locking 6.35mm Miniature Toggle Switch SPDT 4A 30VDC

by APEM
SKU 487271

MPN: 5232THWADKB14V/1

Availability:
250 in stock
Original price £6.28 - Original price £6.28
Original price
£6.28
£6.28 - £6.28
Current price £6.28
The 5232THWADKB14V/1 is a miniature toggle switch featuring a 6.35mm bushing and On-(On) momentary SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of panel and PCB mount applications.

  • SPDT contacts
  • On-(On) momentary operation
  • Right angle PCB terminals
  • Lever: locking 14.85mm length
  • 4.7mm pitch terminal spacing
  • Rating: 4A 30VDC
  • Panel cut-out: 6.5mm
  • Epoxy sealed terminals
  • APEM 5000 series
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Contact Configuration SPDT
    Contact Material Gold Plated Silver
    Contact Rating 4A 30VDC
    Current Rating 4A
    Electrical Life 50,000 Cycles
    Illuminated No
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Panel Cut Out 6.5mm
    Panel Thickness 2.5mm
    Pitch 4.7mm
    Product Series 5000
    Switch Operation On-(On)
    Terminal Type Through Hole
    Voltage Rating 30VDC
