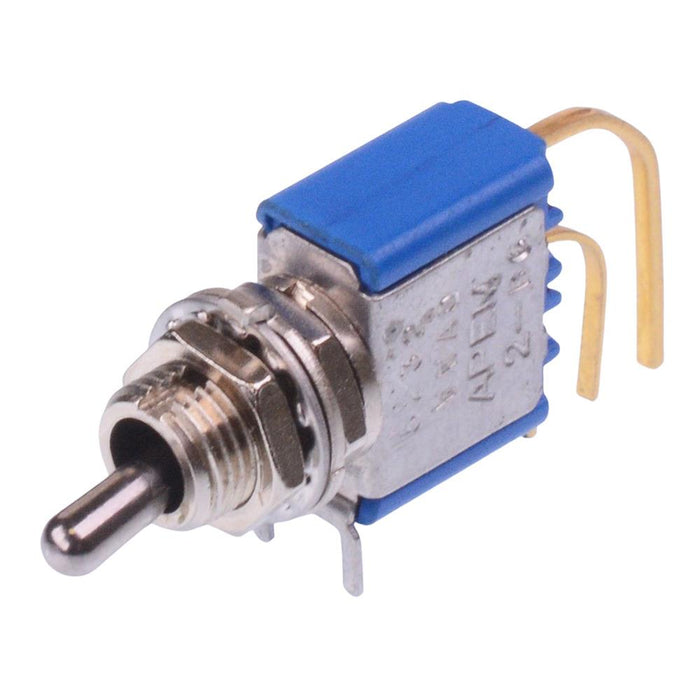

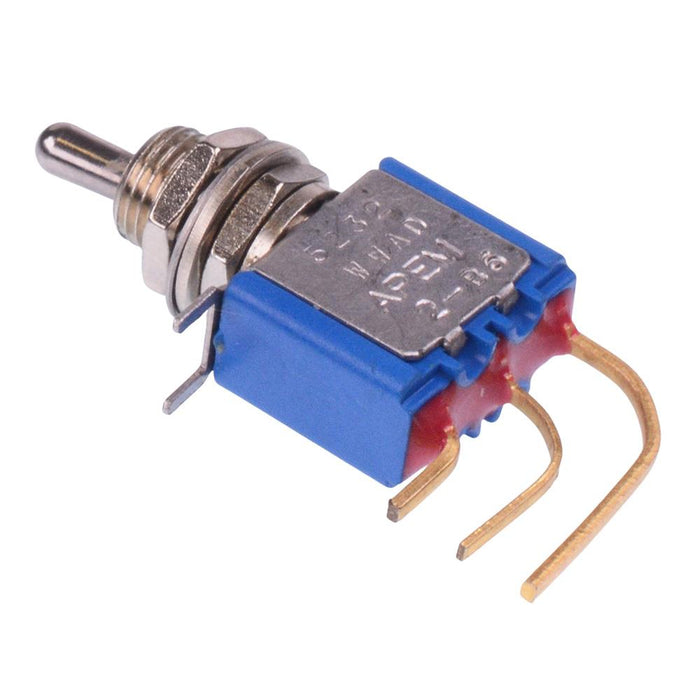

5232WWADB16X386 APEM On-(On) Momentary 6.35mm Miniature Toggle Switch SPDT 4A 30VDC
by APEM
SKU 488125
MPN: 5232WWADB16X386
Availability:
30 in stock
Original price
£3.55
-
Original price
£3.55
Original price
£3.55
Inc VAT
£3.55
-
£3.55
Current price
£3.55
Inc VAT
The 5232WWADB16X386 is a miniature toggle switch featuring a 6.35mm bushing and On-(On) momentary SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of panel and PCB mount applications.
SPDT contacts On-(On) momentary operation Right angle PCB terminals Vertical mounting Lever: round 5.5mm length 4.7mm pitch terminal spacing Rating: 4A 30VDC Panel cut-out: 6.5mm Epoxy sealed terminals APEM 5000 series
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPDT |
| Contact material | Gold Plated Silver |
| Contact rating | 4A 30VDC |
| Current rating | 4A |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 6.5mm |
| Panel thickness | 2.5mm |
| Pitch | 4.7mm |
| Product series | 5000 |
| Switch operation | On-(On) |
| Terminal type | Through Hole |
| Voltage rating | 30VDC |
