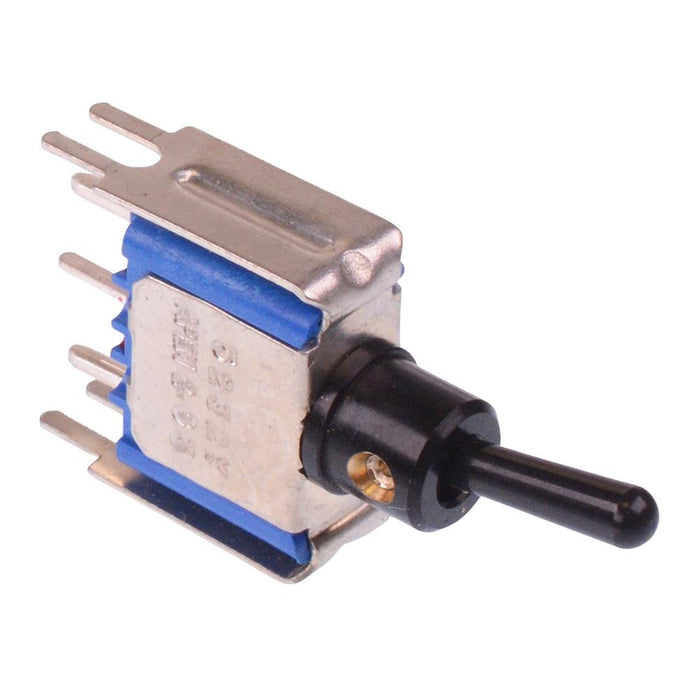

5232YABG17 APEM Black On-(On) Momentary Miniature PCB Toggle Switch SPDT 4A 30VDC
by APEM
SKU 487783
MPN: 5232YABG17
Availability:
50 in stock
Original price
£4.52
-
Original price
£4.52
Original price
£4.52
£4.52
-
£4.52
Current price
£4.52
The 5232YABG17 is a miniature toggle switch featuring a plain black bushing and On-(On) momentary SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of PCB mount applications.
SPDT contacts On-(On) momentary operation Bracket mounting PCB terminals Lever: round 7mm length 4.7mm pitch terminal spacing Rating: 4A 30VDC Epoxy sealed terminals APEM 5000 series
Specification
Actuation | Momentary |
Back Order Lead Time | 10 Days |
Contact Configuration | SPDT |
Contact Material | Silver |
Contact Rating | 4A 30VDC |
Current Rating | 4A |
Electrical Life | 50,000 Cycles |
Illuminated | No |
Mounting Style | PCB |
Number of Poles | 1 |
Number of Positions | 2 |
Operating Temperature | -40°C to +85°C |
Pitch | 4.7mm |
Product Series | 5000 |
Switch Operation | On-(On) |
Terminal Type | Through Hole |
Voltage Rating | 30VDC |
