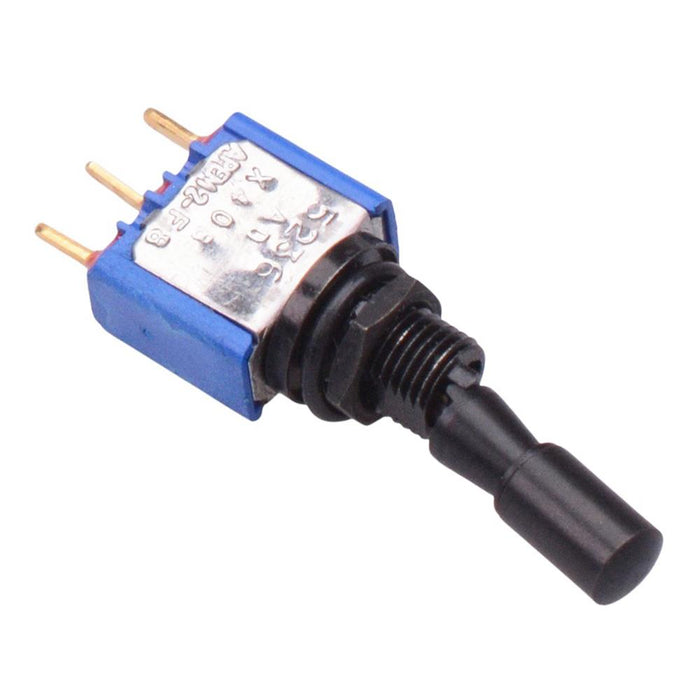

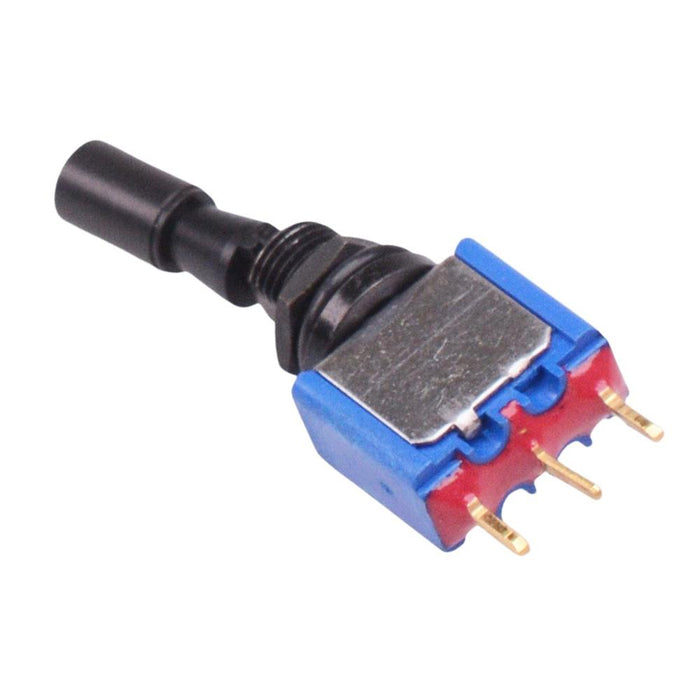

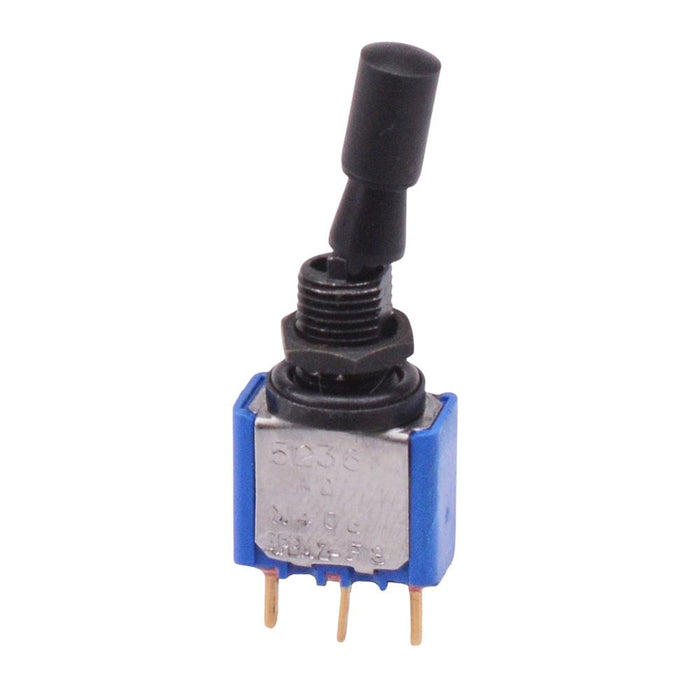

5236ADGB-2VX408 APEM Black On-On Miniature Toggle Switch Locking Lever SPDT
by APEM
SKU 489824
MPN: 5236ADGB-2VX408
Availability:
49 in stock
Original price
£18.10
-
Original price
£18.10
Original price
£18.10
£18.10
-
£18.10
Current price
£18.10
The 5236ADGB-2VX408 is a miniature toggle switch featuring On-On SPDT contacts, from the APEM 5000 series of switches. The switches feature PCB terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
PCB solder terminals Black finish Contact rating: 4A 30VDC Panel cut-out: 6.5mm 2 position locking lever Gold plated silver contacts Epoxy sealed terminals Front panel sealing by two O-rings 14.75mm length lever Terminal pitch: 4.7mm Body dimensions: 7.0 x 13.2 x 13.3mm (length x width x height) UL, CSA, CECC approved APEM 5000 series
Specification
Actuation | Latching |
Contact Configuration | SPDT |
Contact Material | Gold Plated Silver |
Contact Rating | 4A 30VDC |
Current Rating | 4A |
Electrical Life | 50,000 Cycles |
Illuminated | No |
MOQ | 1 |
Mounting Style | Panel |
Number of Poles | 1 |
Number of Positions | 2 |
Operating Temperature | -40°C to +85°C |
Panel Cut Out | 6.5mm |
Panel Thickness | 2.5mm |
Pitch | 4.7mm |
Product Series | 5000 |
Switch Operation | On-On |
Terminal Type | Solder |
Voltage Rating | 30VDC |
