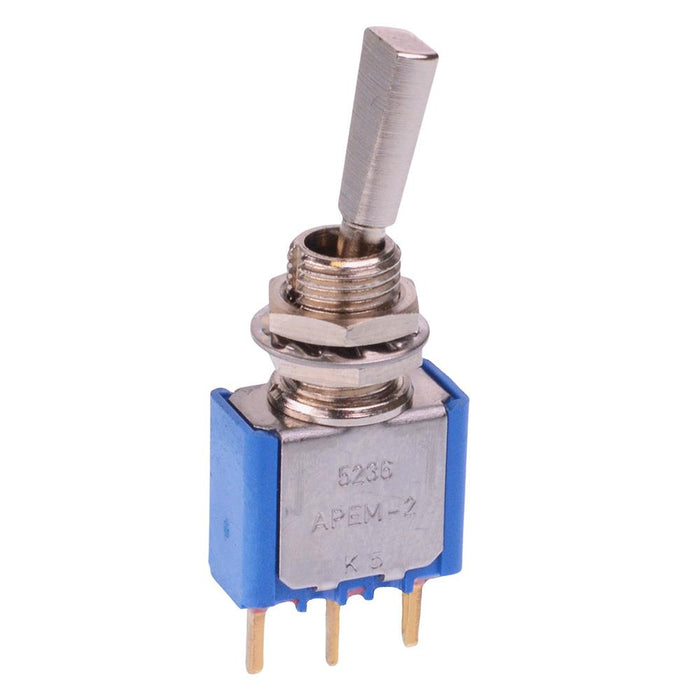

5236CD9 APEM On-On 6.35mm Miniature Toggle Switch SPDT
by APEM
SKU 487904
MPN: 5236CD9
Availability:
54 in stock
Original price
£3.08
-
Original price
£3.08
Original price
£3.08
£3.08
-
£3.08
Current price
£3.08
The 5236CD9 is a miniature toggle switch featuring a 6.35mm bushing and On-On SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of panel and PCB mount applications.
SPDT contacts On-On operation PCB terminals Lever: paddle 11.4mm length 4.7mm pitch terminal spacing Rating: 0.4VA 20VAC/DC Panel cut-out: 6.5mm APEM 5000 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4VA 20VAC/DC |
| Current Rating | 0.4VA |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Pitch | 4.7mm |
| Product Series | 5000 |
| Switch Operation | On-On |
| Terminal Type | Through Hole |
| Voltage Rating | 20VAC/DC |
