5236WCDB16X404 APEM On-On Miniature PCB Toggle Switch SPDT
by APEM
SKU 488174
MPN: 5236WCDB16X404
Availability:
41 in stock
Original price
£2.52
-
Original price
£2.52
Original price
£2.52
£2.52
-
£2.52
Current price
£2.52

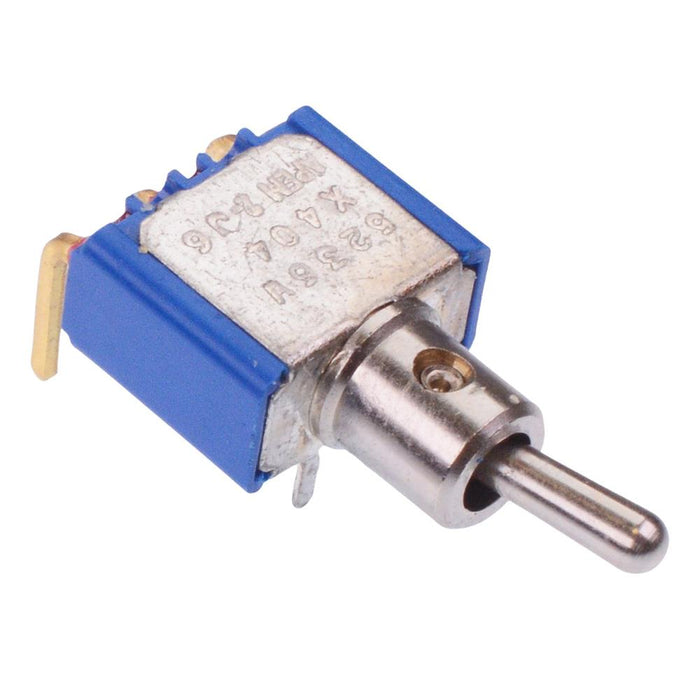

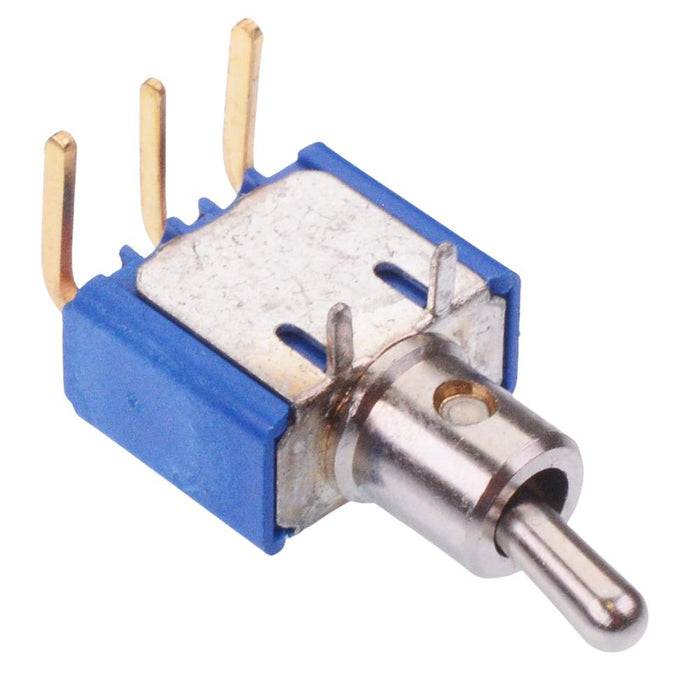

The 5236WCDB16X404 is a miniature toggle switch featuring a plain bushing and On-On SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of PCB mount applications.
SPDT contacts On-On operation Right angle PCB terminals Lever: round 5.5mm length 4.7mm pitch terminal spacing Rating: 0.4VA 20VAC/DC Epoxy sealed terminals APEM 5000 series
Specification
Actuation | Latching |
Back Order Lead Time | 10 Days |
Contact Configuration | SPDT |
Contact Material | Gold Plated Brass |
Contact Rating | 0.4VA 20VAC/DC |
Current Rating | 0.4VA |
Electrical Life | 50,000 Cycles |
Illuminated | No |
Mounting Style | PCB |
Number of Poles | 1 |
Number of Positions | 2 |
Operating Temperature | -40°C to +85°C |
Pitch | 4.7mm |
Product Series | 5000 |
Switch Operation | On-On |
Terminal Type | Through Hole |
Voltage Rating | 20VAC/DC |
