5236WWA9 APEM On-On Miniature PCB Toggle Switch SPDT 4A 30VDC
by APEM
SKU 487835
MPN: 5236WWA9
Availability:
17 in stock
Original price
£2.67
-
Original price
£2.67
Original price
£2.67
£2.67
-
£2.67
Current price
£2.67

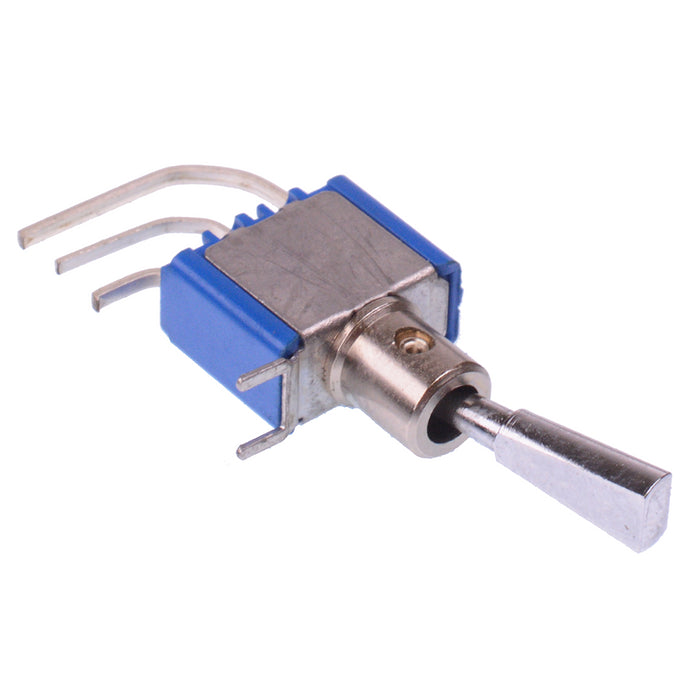

The 5236WWA9 is a miniature toggle switch featuring a plain bushing and On-On SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of PCB mount applications.
SPDT contacts On-On operation Vertical mounting Right angle PCB terminals Lever: paddle 11.4mm length 4.7mm pitch terminal spacing Rating: 4A 30VDC APEM 5000 series
Specification
Actuation | Latching |
Back Order Lead Time | 10 Days |
Contact Configuration | SPDT |
Contact Material | Silver |
Contact Rating | 4A 30VDC |
Current Rating | 4A |
Electrical Life | 50,000 Cycles |
Illuminated | No |
Mounting Style | PCB |
Number of Poles | 1 |
Number of Positions | 2 |
Operating Temperature | -40°C to +85°C |
Pitch | 4.7mm |
Product Series | 5000 |
Switch Operation | On-On |
Terminal Type | Through Hole |
Voltage Rating | 30VDC |
