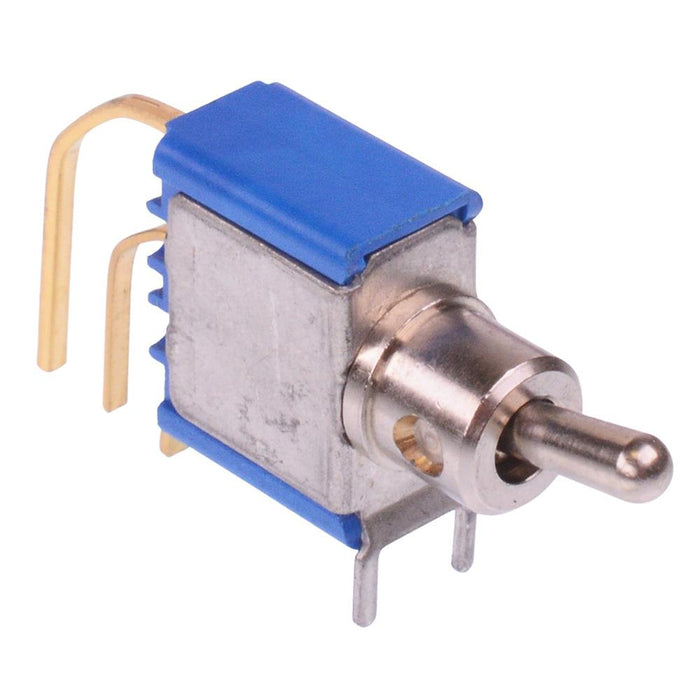

5236WWADB7 APEM On-On Miniature PCB Toggle Switch SPDT 4A 30VDC

by APEM
SKU 487812

MPN: 5236WWADB7

Availability:
65 in stock
Original price £2.95 - Original price £2.95
Original price
£2.95
£2.95 - £2.95
Current price £2.95
The 5236WWADB7 is a miniature toggle switch featuring a plain bushing and On-On SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of PCB mount applications.

  • SPDT contacts
  • On-On operation
  • Vertical mounting
  • Right angle PCB terminals
  • Lever: round 6.7mm length
  • 4.7mm pitch terminal spacing
  • Rating: 4A 30VDC
  • Epoxy sealed terminals
  • APEM 5000 series
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Contact Configuration SPDT
    Contact Material Gold Plated Silver
    Contact Rating 4A 30VDC
    Current Rating 4A
    Electrical Life 50,000 Cycles
    Illuminated No
    Mounting Style PCB
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Pitch 4.7mm
    Product Series 5000
    Switch Operation On-On
    Terminal Type Through Hole
    Voltage Rating 30VDC
