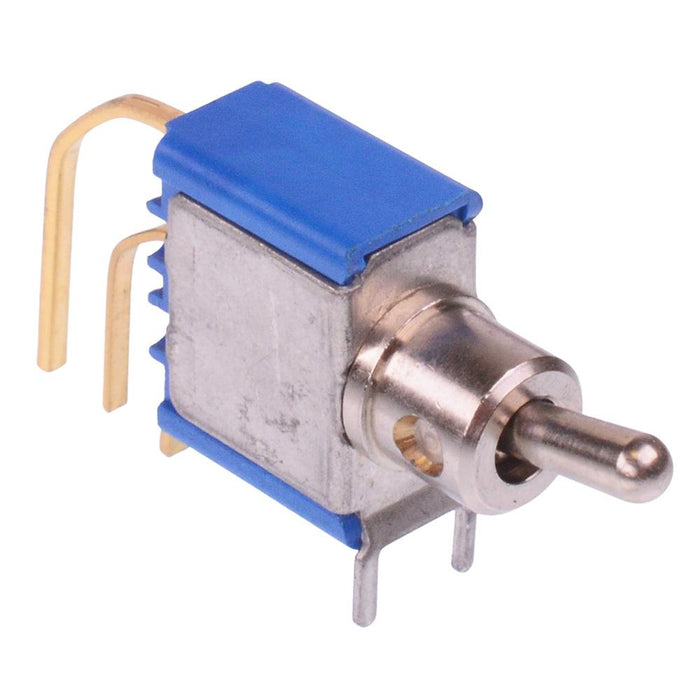

5236WWADB7 APEM On-On Miniature PCB Toggle Switch SPDT 4A 30VDC
by APEM
SKU 487812
MPN: 5236WWADB7
Availability:
Out of stock
Sold out
Original price
£3.19
-
Original price
£3.19
Original price
£3.19
£3.35
£3.35
-
£3.35
Current price
£3.35
The 5236WWADB7 is a miniature toggle switch featuring a plain bushing and On-On SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of PCB mount applications.
SPDT contacts On-On operation Vertical mounting Right angle PCB terminals Lever: round 6.7mm length 4.7mm pitch terminal spacing Rating: 4A 30VDC Epoxy sealed terminals APEM 5000 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 4.7mm |
| Product Series | 5000 |
| Switch Operation | On-On |
| Terminal Type | Through Hole |
| Voltage Rating | 30VDC |
