5236WWCDB16X445 APEM On-On Miniature Right Angle PCB Toggle Switch SPDT

by APEM
SKU 489825

MPN: 5236WWCDB16X445

Availability:
49 in stock
Original price £4.42 - Original price £4.42
Original price
£4.42
£4.42 - £4.42
Current price £4.42

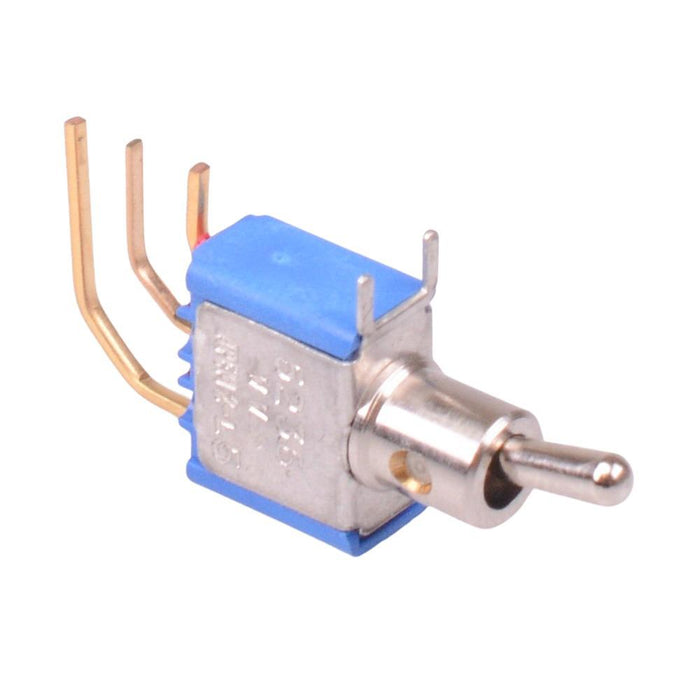

The 5236WWCDB16X445 is a right angle miniature toggle switch featuring On-On SPDT contacts, from the APEM 5000 series of switches. The switches feature PCB terminals and plain bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

  • PCB solder terminals
  • Contact rating: 4A 30VDC
  • Gold plated brass contacts
  • Epoxy sealed terminals
  • Short 5.5mm lever
  • Terminal pitch: 3.81mm
  • Body dimensions: 7.0 x 11.0 x 13.2mm (length x width x height)
  • UL, CSA, CECC approved
  • APEM 5000 series
  • Specification
    Actuation Latching
    Contact Configuration SPDT
    Contact Material Gold Plated Brass
    Contact Rating 0.4VA 20VAC/DC
    Current Rating 0.4VA
    Electrical Life 50,000 Cycles
    Illuminated No
    MOQ 1
    Mounting Style PCB
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Pitch 4.7mm
    Product Series 5000
    Switch Operation On-On
    Terminal Type Solder
    Voltage Rating 20VAC/DC
