5236WWCDB4N APEM On-On Miniature PCB Toggle Switch SPDT

by APEM
SKU 487914

MPN: 5236WWCDB4N

Availability:
104 in stock
Original price £2.84 - Original price £2.84
Original price
£2.84
£2.84 - £2.84
Current price £2.84

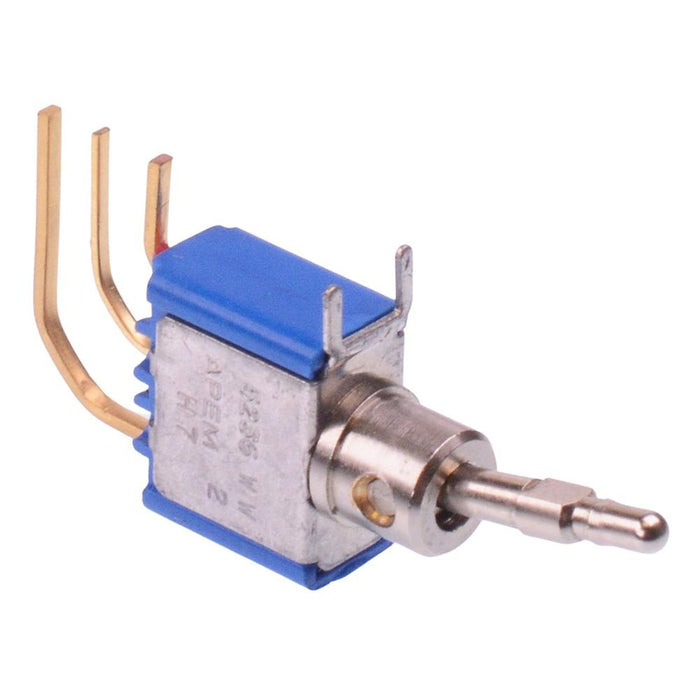

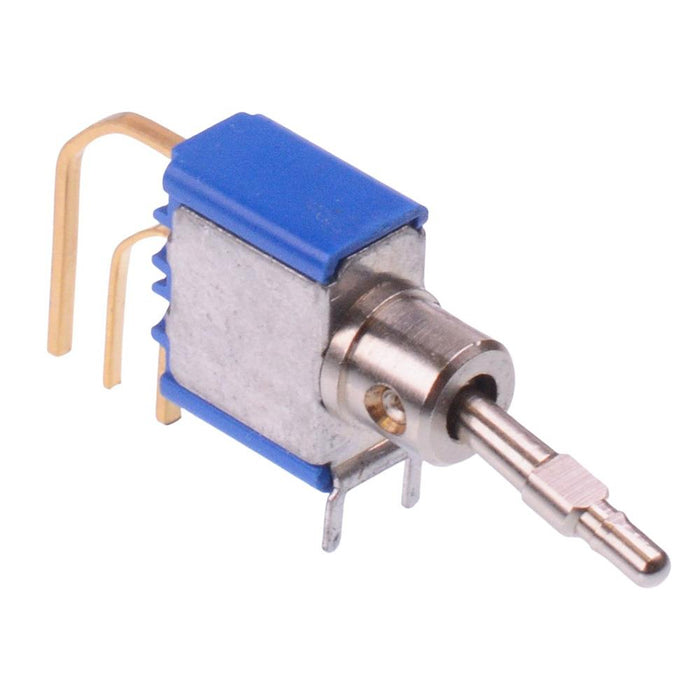

The 5236WWCDB4N is a miniature toggle switch featuring a plain bushing and On-On SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of PCB mount applications.

  • SPDT contacts
  • On-On operation
  • Vertical mounting
  • Right angle PCB terminals
  • Lever: push fit 12mm length
  • 4.7mm pitch terminal spacing
  • Rating: 0.4VA 20VAC/DC
  • Epoxy sealed terminals
  • APEM 5000 series
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Contact Configuration SPDT
    Contact Material Gold Plated Brass
    Contact Rating 0.4VA 20VAC/DC
    Current Rating 0.4VA
    Electrical Life 50,000 Cycles
    Illuminated No
    Mounting Style PCB
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Pitch 4.7mm
    Product Series 5000
    Switch Operation On-On
    Terminal Type Through Hole
    Voltage Rating 20VAC/DC
