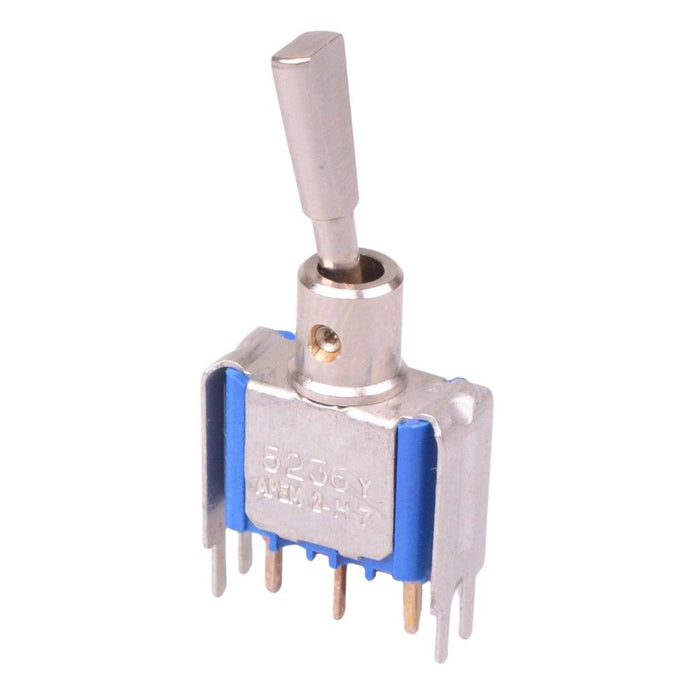

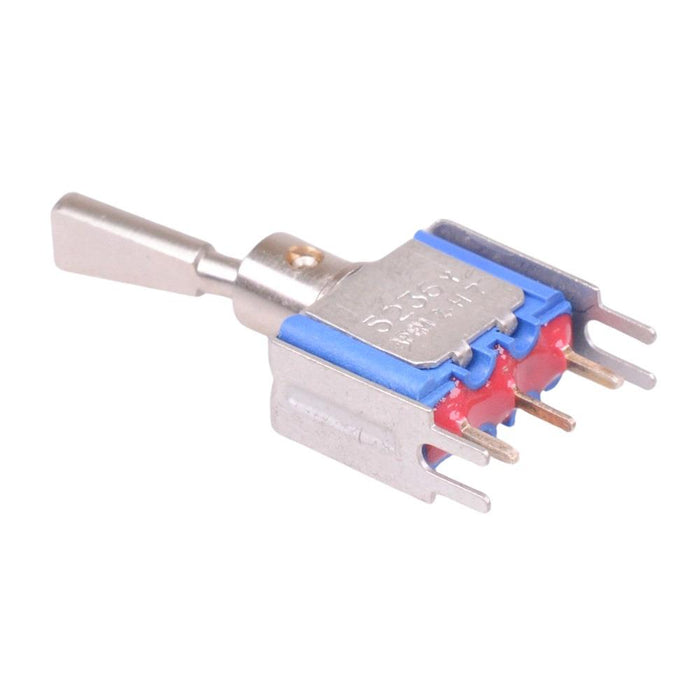

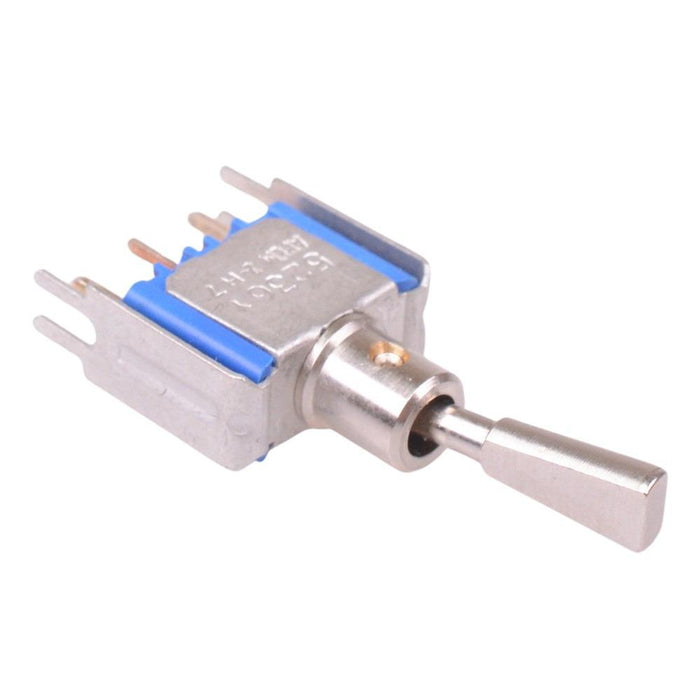

5236YAB-9X445 APEM On-On Miniature Bracket Mounting PCB Toggle Switch SPDT
by APEM
SKU 489826
MPN: 5236YAB-9X445
Availability:
230 in stock
Original price
£5.74
-
Original price
£5.74
Original price
£5.74
£5.74
-
£5.74
Current price
£5.74
The 5236YAB-9X445 is a bracket mounting miniature toggle switch featuring On-On SPDT contacts, from the APEM 5000 series of switches. The switches feature PCB terminals and plain bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
PCB solder terminals Contact rating: 4A 30VDC Silver contacts Epoxy sealed terminals 11.4mm flat lever Terminal pitch: 4.7mm Body dimensions: 7.0 x 15.75 x 13.0mm (length x width x height) UL, CSA, CECC approved APEM 5000 series
Specification
| Actuation | Latching |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 4.7mm |
| Product Series | 5000 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
