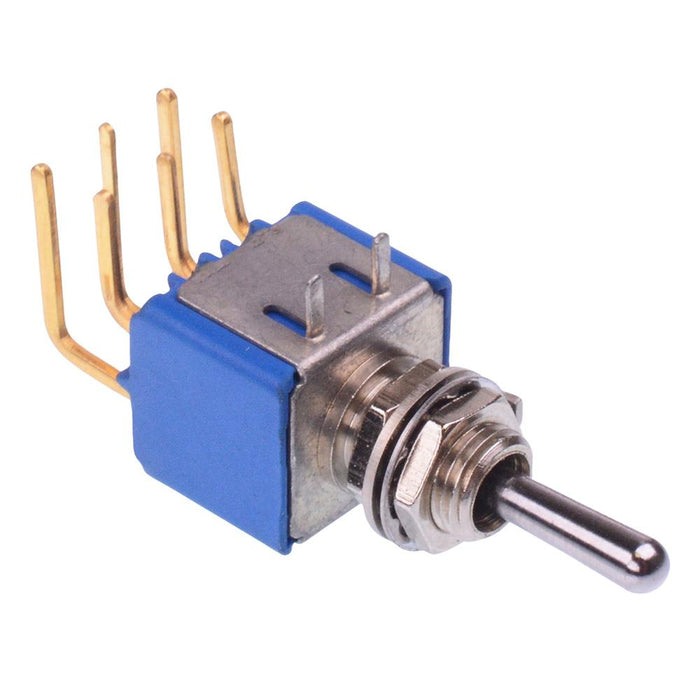

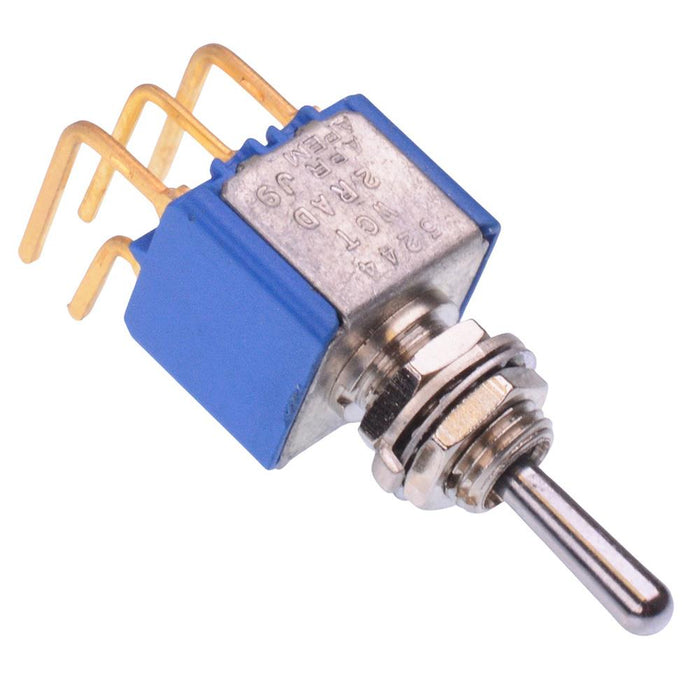

5244CT2RWAD1.25X APEM (On)-On-(On) Momentary 6.35mm Miniature Toggle Switch DPDT 4A 30VDC
by APEM
SKU 487744
MPN: 5244CT2RWAD1.25X
Availability:
70 in stock
Original price
£3.30
-
Original price
£3.30
Original price
£3.30
Inc VAT
£3.30
-
£3.30
Current price
£3.30
Inc VAT
The 5244CT2RWAD1.25X is a miniature toggle switch featuring a 6.35mm bushing and (On)-On-(On) momentary DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of panel and PCB mount applications.
DPDT contacts (On)-On-(On) momentary operation PCB terminals Lever: round 10.5mm length 4.7mm pitch terminal spacing Rating: 4A 30VDC Panel cut-out: 6.5mm APEM 5000 series
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | DPDT |
| Contact material | Gold Plated Silver |
| Contact rating | 4A 30VDC |
| Current rating | 4A |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 6.5mm |
| Panel thickness | 2.5mm |
| Pitch | 4.7mm |
| Product series | 5000 |
| Switch operation | (On)-On-(On) |
| Terminal type | Through Hole |
| Voltage rating | 30VDC |
