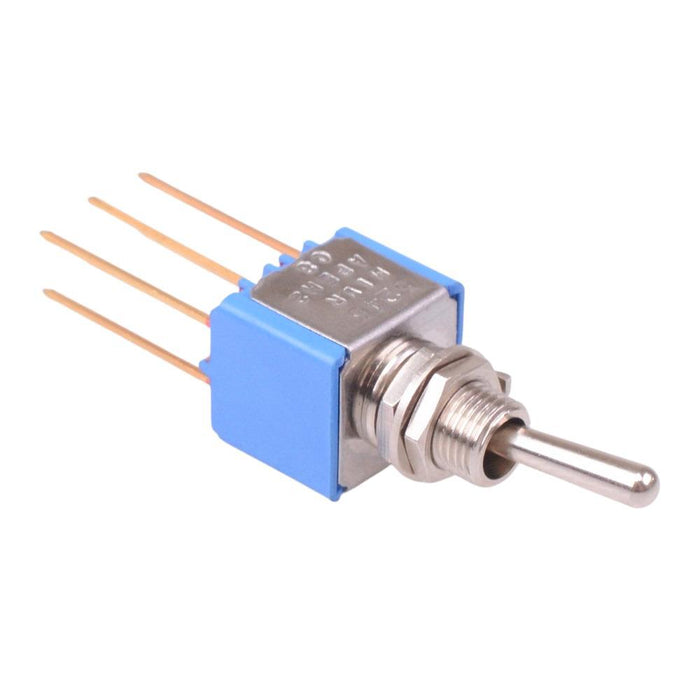

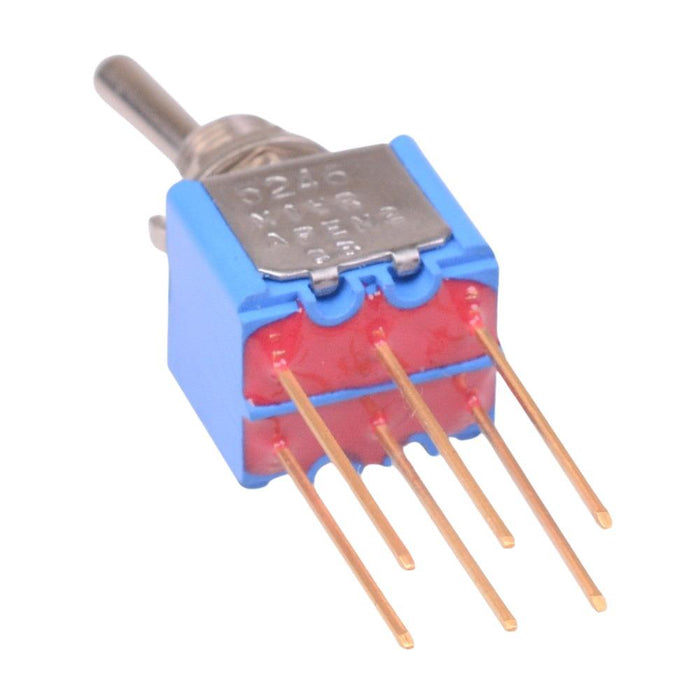

5246MIWRCDB APEM On-On Vertical PCB Miniature Toggle Switch DPDT
by APEM
SKU 489832
MPN: 5246MIWRCDB
Availability:
46 in stock
Original price
£5.49
-
Original price
£5.49
Original price
£5.49
£5.49
-
£5.49
Current price
£5.49
The 5246MIWRCDB is a vertical miniature toggle switch featuring On-On DPDT contacts, from the APEM 5000 series of switches. The switches feature PCB terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
PCB solder terminals Contact rating: 4A 30VDC Gold plated brass contacts Epoxy sealed terminals 10.5mm round lever Terminal pitch: 4.75 x 4.7mm Body dimensions: 11 x 12 x 13.2mm (length x width x height) UL, CSA, CECC approved APEM 5000 series
Specification
| Actuation | Latching |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4VA 20VAC/DC |
| Current Rating | 0.4VA |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Pitch | 4.7mm |
| Product Series | 5000 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 20VAC/DC |
