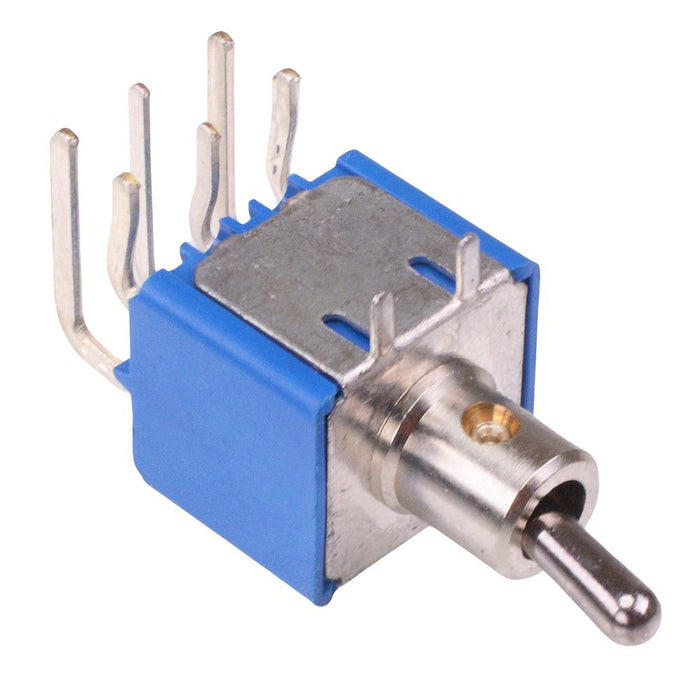

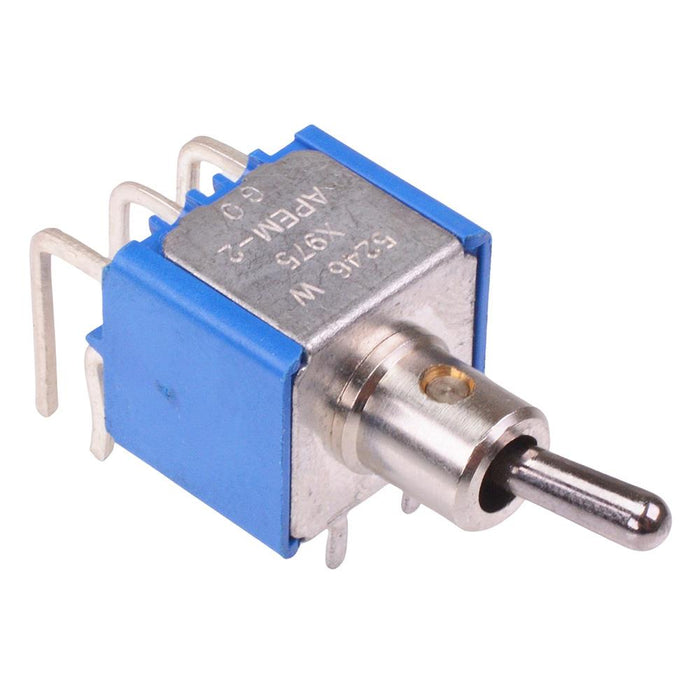

5246WA-16X975-01 APEM On-On Miniature PCB Toggle Switch DPDT 4A 30VDC

by APEM
SKU 487254

MPN: 5246WA-16X975-01

Availability:
1500 in stock
Original price £3.20 - Original price £3.20
Original price
£3.20
£3.20 - £3.20
Current price £3.20
The 5246WA-16X975-01 is a miniature toggle switch featuring a plain bushing and On-On DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of PCB mount applications.

  • DPDT contacts
  • On-On operation
  • Right angle PCB terminals
  • Lever: round 8.5mm length
  • 4.7mm pitch terminal spacing
  • Rating: 4A 30VDC
  • APEM 5000 series
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Contact Configuration DPDT
    Contact Material Silver
    Contact Rating 4A 30VDC
    Current Rating 4A
    Electrical Life 50,000 Cycles
    Illuminated No
    Mounting Style PCB
    Number of Poles 2
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Pitch 4.7mm
    Product Series 5000
    Switch Operation On-On
    Terminal Type Through Hole
    Voltage Rating 30VDC
