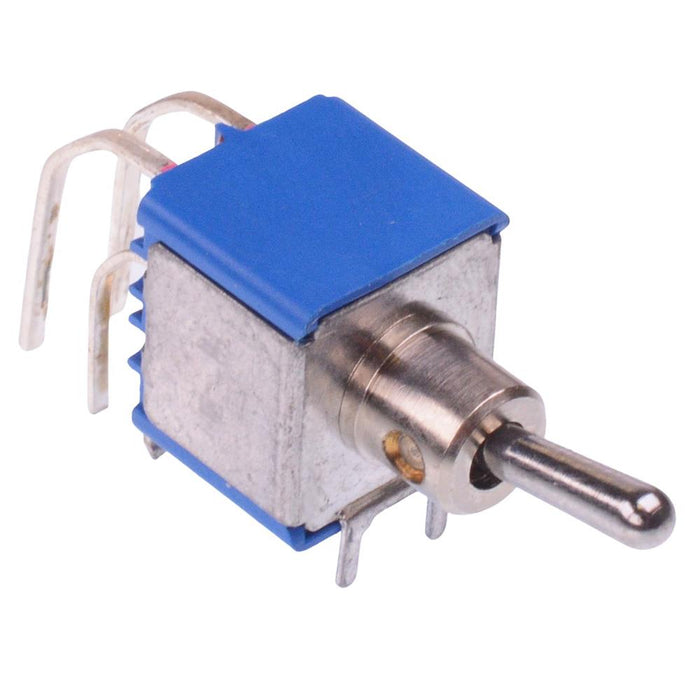

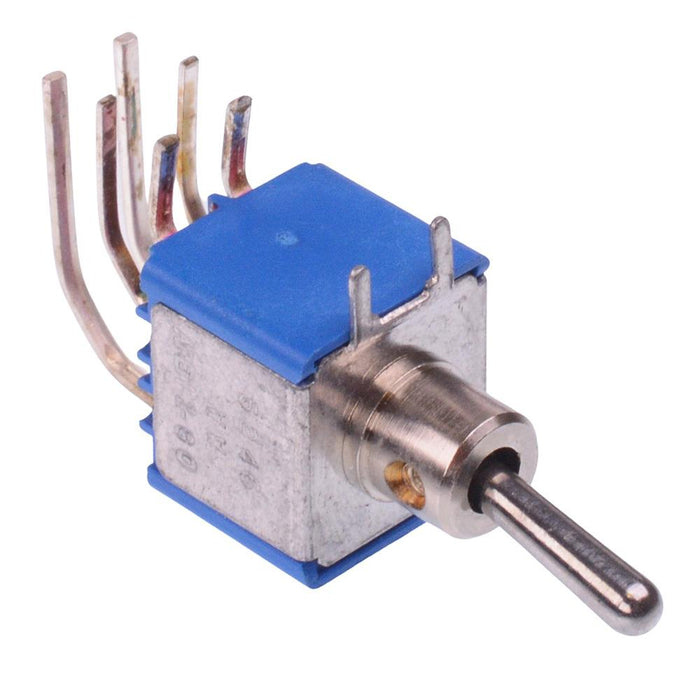

5246WWAB17 APEM On-On Miniature PCB Toggle Switch DPDT 4A 30VDC
by APEM
SKU 487784
MPN: 5246WWAB17
Availability:
73 in stock
Original price
£3.81
-
Original price
£3.81
Original price
£3.81
£4.32
£4.32
-
£4.32
Current price
£4.32
The 5246WWAB17 is a miniature toggle switch featuring a plain bushing and On-On DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of PCB mount applications.
DPDT contacts On-On operation Vertical mounting Right angle PCB terminals Lever: round 7mm length 4.7mm pitch terminal spacing Rating: 4A 30VDC Epoxy sealed terminals APEM 5000 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 4.7mm |
| Product Series | 5000 |
| Switch Operation | On-On |
| Terminal Type | Through Hole |
| Voltage Rating | 30VDC |
