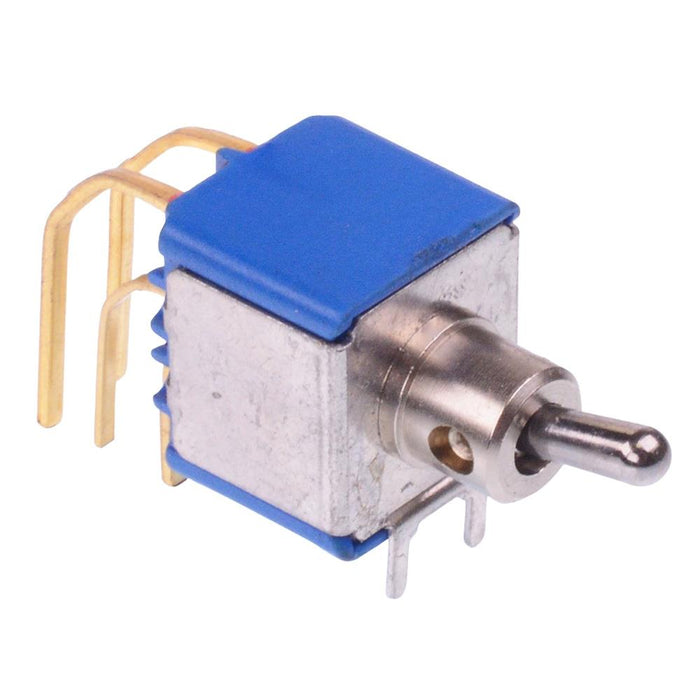

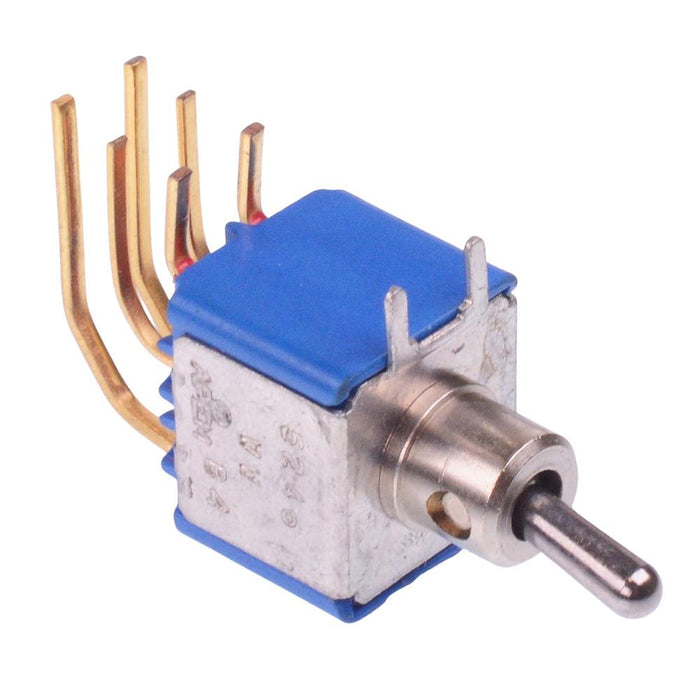

5246WWCDB7 APEM On-On Miniature PCB Toggle Switch DPDT

by APEM
SKU 487753

MPN: 5246WWCDB7

Availability:
61 in stock
Original price £3.83 - Original price £3.83
Original price
£3.83 Inc VAT
£3.83 - £3.83
Current price £3.83 Inc VAT
The 5246WWCDB7 is a miniature toggle switch featuring a plain bushing and On-On DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of PCB mount applications.

  • DPDT contacts
  • On-On operation
  • Vertical mounting
  • Right angle PCB terminals
  • Lever: round 7mm length
  • 4.7mm pitch terminal spacing
  • Rating: 0.4VA 20VAC/DC
  • Epoxy sealed terminals
  • APEM 5000 series
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration DPDT
    Contact material Gold Plated Brass
    Contact rating 0.4VA 20VAC/DC
    Current rating 0.4VA
    Electrical life 50,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 2
    Number of positions 2
    Operating temperature -40°C to +85°C
    Pitch 4.7mm
    Product series 5000
    Switch operation On-On
    Terminal type Through Hole
    Voltage rating 20VAC/DC
