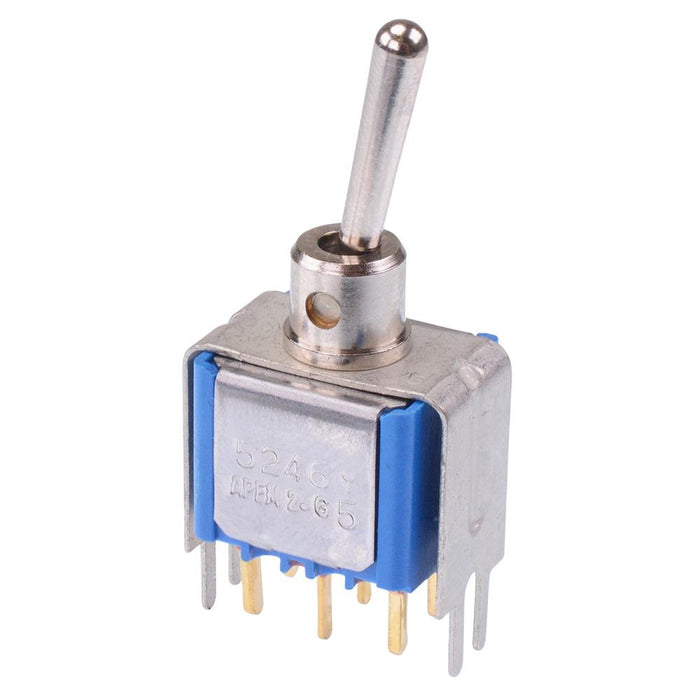

5246YCDB APEM On-On Miniature PCB Toggle Switch DPDT

by APEM
SKU 487241

MPN: 5246YCDB

Availability:
500 in stock
Original price £4.31 - Original price £4.31
Original price
£4.31
£4.31 - £4.31
Current price £4.31
The 5246YCDB is a miniature toggle switch featuring a plain bushing and On-On DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of PCB mount applications.

  • DPDT contacts
  • On-On operation
  • Bracket mounting
  • PCB terminals
  • Lever: round 13.5mm length
  • 4.7mm pitch terminal spacing
  • Rating: 0.4VA 20VAC/DC
  • Epoxy sealed terminals
  • APEM 5000 series
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Contact Configuration DPDT
    Contact Material Gold Plated Brass
    Contact Rating 0.4VA 20VAC/DC
    Current Rating 0.4VA
    Electrical Life 50,000 Cycles
    Illuminated No
    Mounting Style PCB
    Number of Poles 2
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Pitch 4.7mm
    Product Series 5000
    Switch Operation On-On
    Terminal Type Through Hole
    Voltage Rating 20VAC/DC
