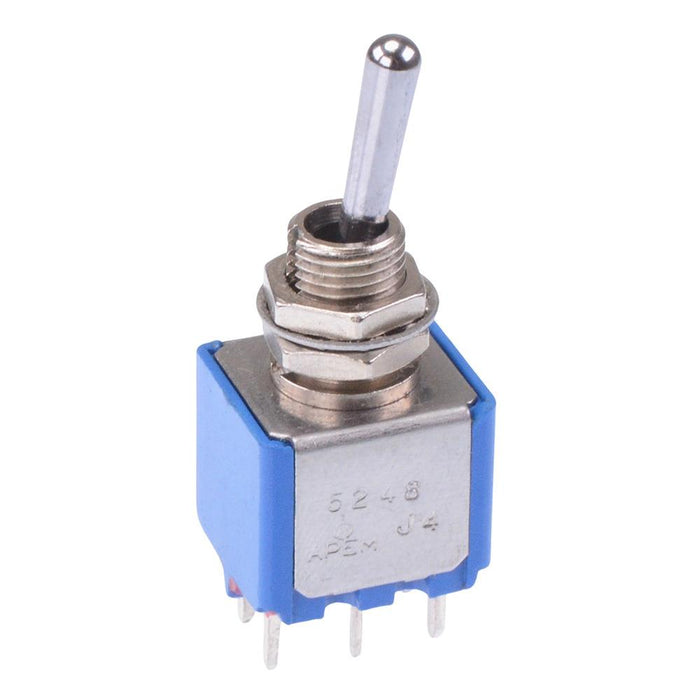

5248ABX606 APEM On-Off-(On) Momentary 6.35mm Miniature Toggle Switch DPDT 4A 30VDC
by APEM
SKU 487288
MPN: 5248ABX606
Availability:
700 in stock
Original price
£3.36
-
Original price
£3.36
Original price
£3.36
£3.36
-
£3.36
Current price
£3.36
The 5248ABX606 is a miniature toggle switch featuring a 6.35mm bushing and On-Off-(On) momentary DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of panel and PCB mount applications.
DPDT contacts On-Off-(On) momentary operation PCB terminals Lever: round 10.5mm length 4.7mm pitch terminal spacing Rating: 4A 30VDC Panel cut-out: 6.5mm Epoxy sealed terminals APEM 5000 series
Specification
Actuation | Latching / Momentary |
Back Order Lead Time | 10 Days |
Contact Configuration | DPDT |
Contact Material | Silver |
Contact Rating | 4A 30VDC |
Current Rating | 4A |
Electrical Life | 50,000 Cycles |
Illuminated | No |
Mounting Style | Panel |
Number of Poles | 2 |
Number of Positions | 3 |
Operating Temperature | -40°C to +85°C |
Panel Cut Out | 6.5mm |
Panel Thickness | 2.5mm |
Pitch | 4.7mm |
Product Series | 5000 |
Switch Operation | On-Off-(On) |
Terminal Type | Through Hole |
Voltage Rating | 30VDC |
