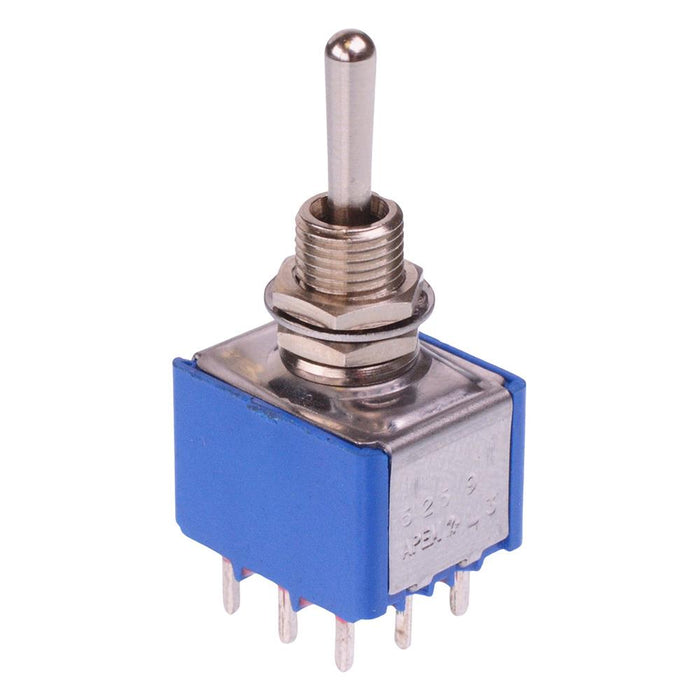

5259A APEM On-Off-On 6.35mm Miniature Toggle Switch 3PDT 4A 30VDC
by APEM
SKU 487796
MPN: 5259A
Availability:
42 in stock
Original price
£7.03
-
Original price
£7.03
Original price
£7.03
£7.97
£7.97
-
£7.97
Current price
£7.97
The 5259A is a miniature toggle switch featuring a 6.35mm bushing and On-Off-On 3PDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of panel and PCB mount applications.
3PDT contacts On-Off-On operation PCB terminals Lever: round 10.5mm length 4.7mm pitch terminal spacing Rating: 4A 30VDC Panel cut-out: 6.5mm APEM 5000 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | 3PDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 40,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 3 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Pitch | 4.7mm |
| Product Series | 5000 |
| Switch Operation | On-Off-On |
| Terminal Type | Through Hole |
| Voltage Rating | 30VDC |
