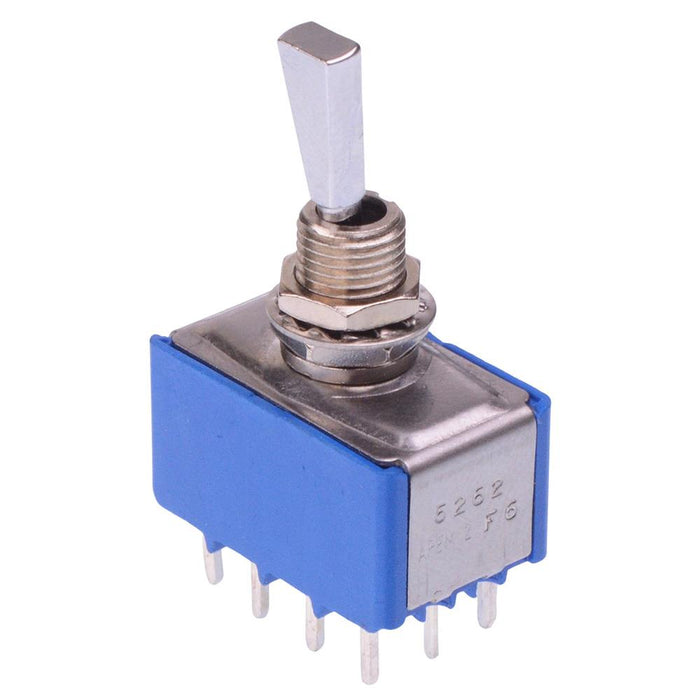

5262A9 APEM On-(On) Momentary 6.35mm Miniature Toggle Switch 4PDT 4A 30VDC
by APEM
SKU 487722
MPN: 5262A9
Availability:
31 in stock
Original price
£10.21
-
Original price
£10.21
Original price
£10.21
£10.21
£10.21
-
£10.21
Current price
£10.21
The 5262A9 is a miniature toggle switch featuring a 6.35mm bushing and On-(On) momentary 4PDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of panel and PCB mount applications.
4PDT contacts On-(On) momentary operation PCB terminals Lever: paddle 11.4mm length 4.7mm pitch terminal spacing Rating: 4A 30VDC Panel cut-out: 6.5mm APEM 5000 series
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 |
| Contact Configuration | 4PDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 30,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 4 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Pitch | 4.7mm |
| Product Series | 5000 |
| Switch Operation | On-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 30VDC |
