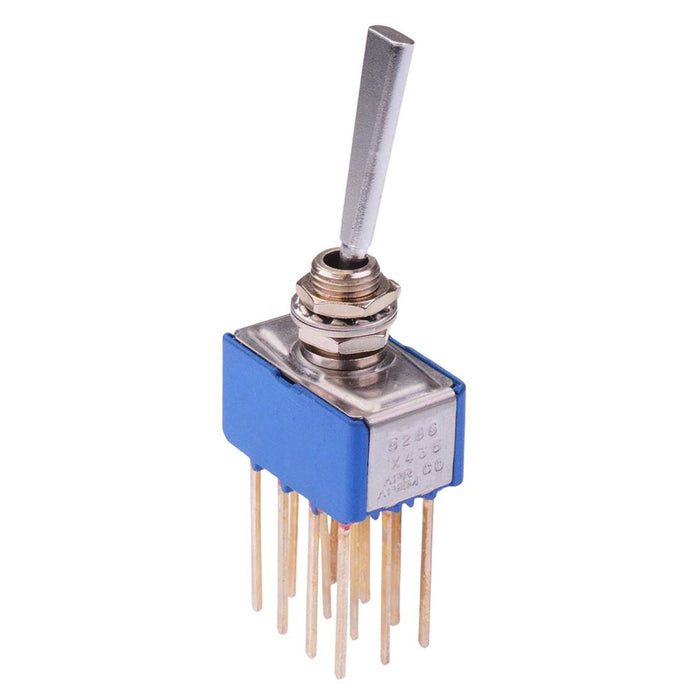

5266A8X435+U500 APEM On-On 6.35mm Miniature Toggle Switch 4PDT 4A 30VDC

by APEM
SKU 487399

MPN: 5266A8X435+U500

Availability:
98 in stock
Original price £7.50 - Original price £7.50
Original price
£7.50 Inc VAT
£7.50 - £7.50
Current price £7.50 Inc VAT
The 5266A8X435+U500 is a miniature toggle switch featuring a 6.35mm bushing and On-On 4PDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of panel and PCB mount applications.

  • 4PDT contacts
  • On-On operation
  • PCB terminals
  • Lever: paddle 21.3mm length
  • 4.7mm pitch terminal spacing
  • Rating: 4A 30VDC
  • Panel cut-out: 6.5mm
  • APEM 5000 series
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Contact Configuration 4PDT
    Contact Material Silver
    Contact Rating 4A 30VDC
    Current Rating 4A
    Electrical Life 30,000 Cycles
    Illuminated No
    Mounting Style Panel
    Number of Poles 4
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Panel Cut Out 6.5mm
    Panel Thickness 2.5mm
    Pitch 4.7mm
    Product Series 5000
    Switch Operation On-On
    Terminal Type Through Hole
    Voltage Rating 30VDC
