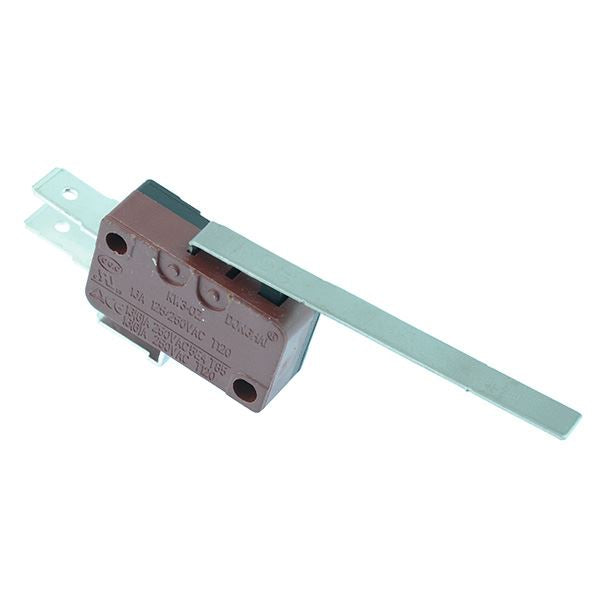

53mm Lever V3 Microswitch SPDT 16A 250VAC

SKU 481685

MPN: 481685

Availability:
500 in stock
Original price £0.88 - Original price £0.88
Original price
£0.88 Inc VAT
£0.88 - £0.88
Current price £0.88 Inc VAT
V3 microswitch featuring a 53mm length lever actuator and SPDT contacts. The switch features quick connect terminals and is suitable for domestic and industrial applications.

  • 53mm length lever actuator
  • Rating: 16A 250VAC
  • NO / NC contacts
  • 6.3mm quick connect terminals
  • Operating force: 5N max
  • Body dimensions: 28 x 10.4 x 15.8mm (Length x Width x Height)
  • Specification
    Back order lead time 45 Days
    Contact configuration SPDT
    Contact rating 16A 250VAC
    Current rating 16A
    Electrical life 50,000 Cycles
    Number of positions 2
    Operating force 5N Max
    Terminal type Quick Connect
    Voltage rating 250VAC
