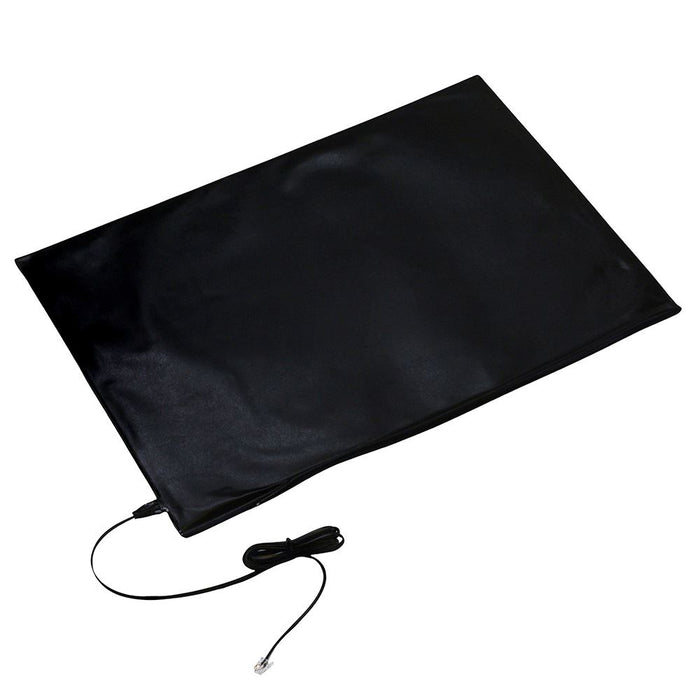

540 x 395mm Pressure Sensitive Mat RJ-9

SKU 485929

MPN: 485929

126 in stock
Original price £13.43 - Original price £13.43
Original price
£13.43 Inc VAT
£13.43 - £13.43
Current price £13.43 Inc VAT
540 x 395mm pressure sensitive mat featuring NO contacts and RJ-9 connector with 150cm leads, suitable for applications including alarm systems, patient bed monitoring and seat occupancy detection.

  • Can be used with alarm receiver with RJ-9 connector
  • Normally open contacts
  • Dimensions: 540 x 395 x 3mm
  • Operating pressure: 25kg over 50mm²
  • Mat material: Seem welded PVC
  • 150mm of 0.22mm² Black PVC insulated cable
  • Maximum switching voltage: 25V DC
  • Maximum switching current: 0.25A
  • Specification
    Back order lead time 120 Days
    Colour Black
    Contact configuration Normally Open
    Current rating 0.25A
    Operating force 25Kg over 50mm²
    Protection level IP64
    Voltage rating 25VDC
