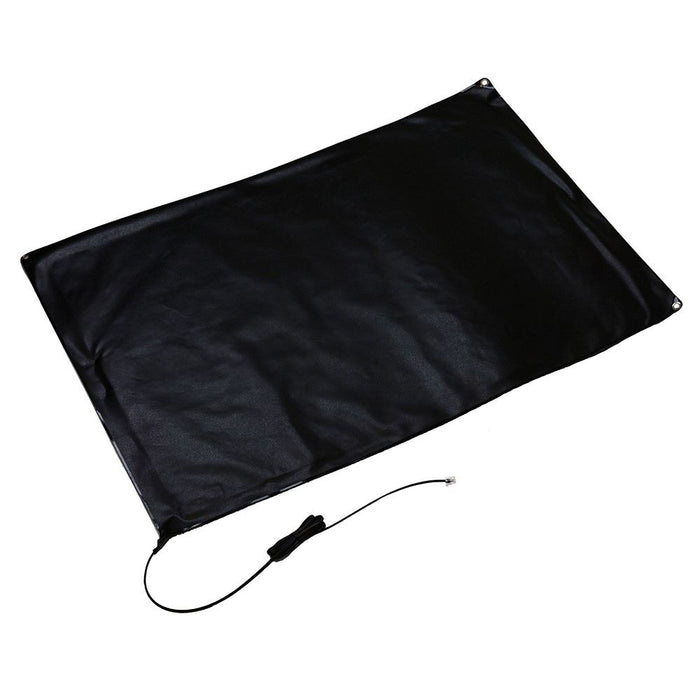

540 x 780mm Pressure Sensitive Mat RJ-9
SKU 485930
MPN: 485930
Availability:
105 in stock
Original price
£15.15
-
Original price
£15.15
Original price
£15.15
Inc VAT
£15.15
-
£15.15
Current price
£15.15
Inc VAT
540 x 780mm pressure sensitive mat featuring NO contacts and RJ-9 connector with 150cm leads, suitable for applications including alarm systems, patient bed monitoring and seat occupancy detection.
Can be used with alarm receiver with RJ-9 connector Normally open contacts Dimensions: 540 x 780 x 3mm Operating pressure: 25kg over 50mm² Mat material: Seem welded PVC 150mm of 0.22mm² Black PVC insulated cable Maximum switching voltage: 25V DC Maximum switching current: 0.25A
Specification
| Back order lead time | 120 Days |
| Colour | Black |
| Contact configuration | Normally Open |
| Current rating | 0.25A |
| Operating force | 25Kg over 50mm² |
| Protection level | IP64 |
| Voltage rating | 25VDC |
